The ERT45R system

ERT45R – One Simulator. Over 20 Pump Types. By Deteq.

Testing electronically controlled diesel injection pumps on a test bench requires simulating the pump's actuators and reading its sensors — traditionally done with a dedicated "simulator box" for each pump type. That means buying and maintaining 20 different boxes.

The ERT45R changes this:
  • A single programmable unit that covers over 20 electronically controlled pump families
  • Switch between pump types by simply changing the **smartcard** (software) and the electrical connections
  • No new hardware, no extra investment — just a different card
  • Compatible with: Bosch VP30, VP44, CP1, CP3; Delphi EPIC, DP210, DP310; Denso; Siemens/VDO and more
  • Full simulation of actuator commands and electronic sensor reading for complete pump calibration
  • Designed for independent diesel workshops and test bench operators who work across multiple pump brands
Deteq equipment — Diesel & Electrical Test Equipment, made in Italy

EUR (ecommerce)
Sort By: Name (A-Z)

The ERT45R system

DETEQ 81.01.1014 ERT45R Programming Kit for Bosch VP44 / VR30 Pumps
ERT45R programming kit for testing Bosch VP44 and VR30 electronically controlled rotary diesel injection pumps. Includes programming smartcard, 2 m basic cable, application adapter cable, illustrated servicing manual and access to available test data. Digitally synchronized testing requires the 81.01.1A01 Digital Pump Phasing System together with the appropriate VP44/VR30 pump-specific phasing/integration equipment. The ERT45R programming kit enables the ERT45R application; it does not program or flash the Bosch PSG pump control unit.
DETEQ 81.01.1022 ERT45R Programming Kit for Zexel Covec-F1 / F2 Pumps
ERT45R programming kit for testing Zexel Covec-F1 and Covec-F2 electronically controlled rotary distributor pumps. ERT45R controls the electronic regulator and reads the TPS (Timing Position Sensor). Includes the application programming smartcard and 2 m basic cable; application-specific adapter equipment is selected according to the pump configuration.
DETEQ 81.01.1024 ERT45R Programming Kit for Zexel VRZ Pumps

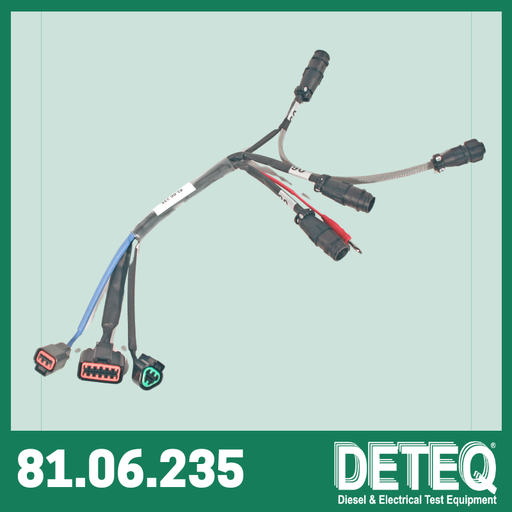

ERT45R programming kit for testing compatible Zexel VRZ electronically controlled rotary pumps. Includes programming smartcard and 2 m basic cable. Adapter cable 81.06.235 is required and not included. Optional VRZ-specific equipment includes 81.07.007 with 81.01.1001 for electronic advance-piston travel measurement, and 81.01.2042 for pressure-valve pressure and flow testing.
DETEQ 81.01.1035 ERT45R Programming Kit for Delphi DP200 / DP210 / DP310 Pumps
ERT45R application kit for Delphi DP rotary pumps, including DP200, DP210 and DP310 timing applications. Includes programming smartcard, 2 m base cable and a mechanical injector equipped with lift sensor for dynamic timing acquisition. Requires the separate 81.01.1A01 Digital Pump Phasing System for angular reference and timing setup. Optional 81.01.1541 adds CPS (Carriage Position Sensing) measurement.
DETEQ 81.01.1041 ERT45R Programming Kit for Denso ECD-V5
Enables the ERT45R control unit to operate and test Denso ECD-V5 rotary pumps. Includes programming card, 2 m base cable, pump adapter cables and illustrated operating manual. Reference test data may be supplied separately where available.
DETEQ 81.01.1042 ERT45R Programming Kit for Denso ECD-V3 / V4 Pumps
ERT45R programming kit for operating and testing Denso ECD-V3 and ECD-V4 electronically controlled rotary pumps. One kit covers both V3 and V4. Includes programming card, 2 m base cable, pump adapter cables and illustrated operating manual. Reference test data may be supplied separately where available. Digital phasing equipment is part of the complete test configuration but is not included in this programming kit.
DETEQ 81.01.1C15 ERT45R Programming Kit for Bosch CP1 / CP3 / CP4 Common Rail Pumps
ERT45R programming kit for Bosch Common Rail pumps including CP1H, CP1K, CP3, CP3.3, CP3.4 and CP4 applications. Includes programming smartcard, application adapter cables and illustrated servicing manual. The universal 2 m Common Rail base cable 81.01.3765 is ordered separately. The complete test configuration also requires the ERT45R Common Rail base equipment and the appropriate hydraulic/mechanical connection equipment for the specific pump. Where a pump version requires external lubrication, the test setup must provide it.
DETEQ 81.01.1C71 ERT45R Programming Kit for Caterpillar C6.6 and C4.4 Common Rail Pumps
ERT45R programming kit for Caterpillar C6.6 and C4.4 Common Rail pump testing. The application provides synchronized injection-valve control, closed-loop rail-pressure control, pulse-wheel and RPM monitoring, pump phasing support and integration with the dedicated high-pressure and flow-measurement circuit.
DETEQ 81.21.090 OTA Electrical Diagnostic Interface
OTA electrical diagnostic interface for diesel injection pump sensors and actuators. Connect the same application adapter cable used for bench testing, leave the multimeter probes fixed in OTA, and use the two rotary selectors to create the required contact combinations. Fixed measuring points and gold-plated contacts make resistance, continuity and short-circuit checks simpler, faster and more reliable. Function comparable to Bosch 0 986 611 929.
DETEQ ERT45R Universal Control Unit for Electronically Controlled Diesel Pumps
Universal programmable control platform for testing electronically controlled diesel injection pumps on a suitable test bench. ERT45R supports conventional electronic and Common Rail applications through application-specific programming kits, using closed-loop actuator-position control where required and closed-loop pressure control for Common Rail systems.
Digital Pump Phasing System with Electronic Angular Reader.
Provides the angular reference required for testing digitally controlled pumps. Resolution: 0.01°. Suitable for Bosch VP44/VR30, Delphi DP210/EPIC and Denso ECD-V3/V4/V5 applications. Designed for test benches with 125 mm shaft centre height; adapters are available for other configurations.
ERT45R programming kit to test the DFP1 and DFP2 Delphi commonrail pumps.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- adapter cables
- servicing manual with step-by-step illustrated instructions

*** basic cable (81.01.3765) to be ordered separately
ERT45R programming kit to test the HP2, HP3 and HP4 Denso commonrail pumps.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- adapter cables
- servicing manual with step-by-step illustrated instructions

*** basic cable (81.01.3765) to be ordered separately
ERT45R programming kit to test the VDO commonrail pumps.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- adapter cables
- servicing manual with step-by-step illustrated instructions

*** basic cable (81.01.3765) to be ordered separately
ERT45R programming kit to test the rotary Delphi DPCN pumps.
The kit includes:
- programming card that allows ERT45R Simulator to actuate the necessary functions to test this type of pump
- basic cable (2 mt. Length)
- adapter cables 81.04.002 (Fiat), 81.04.003 (Ford), 81.04.004 (Volvo), 81.04.005 (Clio-Kangoo 1st generation), 81.04.006 (Clio-Kangoo 2nd generation).
- servicing manual with step-by-step illustrated instructions
- Registration form to receive the test plan for the calibration of Delphi DPCN pumps. The available test data are supplied separately free of charge, after having accepted the licence agreement.
Electronic Advance Piston Travel Sensor
Measures electronically the advance piston displacement in rotary diesel pumps, enabling precise timing verification and calibration through DETEQ control units.
FL400/A Flow-meter
Continuous fuel flow meter for Common Rail pump testing. Measures alternatively the flow feeding the rail and the pressure-control return flow, with the active value displayed directly on the ERT45R control unit. Suitable for automotive, heavy-duty and industrial applications.
HYDRAULIC CONNECTION KIT FOR BOSCH CR PUMPS
HYDRAULIC CONNECTION KIT FOR BOSCH CP1/CP3/CP1H CR PUMPS. Items included:
Connection cables pumps > flow-meter
Cable for feeding pumps
Set of high pressure pipes
HYDRAULIC CONNECTION KIT FOR DELPHI CR PUMPS
HYDRAULIC CONNECTION KIT FOR DELPHI DFP1/DFP2 CR PUMPS:
Connection cables pumps > flow-meter
Set of high pressure pipes
HYDRAULIC CONNECTION KIT FOR DENSO CR HP3/HP4 PUMPS.
HYDRAULIC CONNECTION KIT FOR DENSO CR HP3/HP4 PUMPS. Items included:
Connection cable pumps > flow-meter
Cable for feeding pumps
Set of high pressure pipes
