Denso ECD-V5

EUR (ecommerce)
Sort By: Name (A-Z)

Denso ECD-V5

Advance Measurement Adapter for Denso ECD-V Pumps.
Adapter for advance measurement on Denso ECD-V3/V4/V5 pumps.
DETEQ 81.01.1041 ERT45R Programming Kit for Denso ECD-V5
Enables the ERT45R control unit to operate and test Denso ECD-V5 rotary pumps. Includes programming card, 2 m base cable, pump adapter cables and illustrated operating manual. Reference test data may be supplied separately where available.
DETEQ ERT45R Universal Control Unit for Electronically Controlled Diesel Pumps
Universal programmable control platform for testing electronically controlled diesel injection pumps on a suitable test bench. ERT45R supports conventional electronic and Common Rail applications through application-specific programming kits, using closed-loop actuator-position control where required and closed-loop pressure control for Common Rail systems.
Digital Pump Phasing System with Electronic Angular Reader.
Provides the angular reference required for testing digitally controlled pumps. Resolution: 0.01°. Suitable for Bosch VP44/VR30, Delphi DP210/EPIC and Denso ECD-V3/V4/V5 applications. Designed for test benches with 125 mm shaft centre height; adapters are available for other configurations.
Electronic Advance Piston Travel Sensor
Measures electronically the advance piston displacement in rotary diesel pumps, enabling precise timing verification and calibration through DETEQ control units.

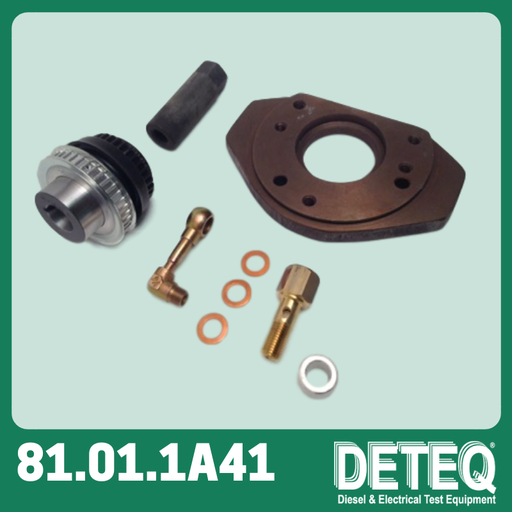

Integration Kit – Denso ECD-V5
Completes the 81.01.1A01 phasing system for Denso ECD-V5 pumps. Includes pump-side coupling components, Ø50 mm mounting flange and fittings for transfer-pressure measurement.
Training on ERT45R (application Denso V3/V4/V5).
Training service for the use of the ERT45R Simulator with the kits for the test of DENSO ECD-V3/V4 & DENSO ECD-V5 pumps..

Service features:
- The training course will take place in Italy at DETEQ headquarter
- Duration of 1 day ( 8 working hours )
- Maximum for 2 participants
- Is held in English Language
- The standard training is destined to participants already operators of diesel systems.
- Is excluded the technical instruction on the technology of the components which are object of the machine operativity. This kind of service can be provided only upon agreement with DETEQ.
-At the end of the training will be issued a frequency profit Certificate

The course includes the training provided by DETEQ Technicians, for:
- Performance features of the products
- Details and installation problems
- Methods of use
- Maintenance
- Practice with the help of DETEQ technicians. The participants will be first instructed and then followed step by step by our technical personnel for practical exercises.
VTR110 Digital Thermometer and Fuel Cooling Device.
Measures pump outlet fuel temperature and allows the pump control valve to be bypassed for faster fuel cooling during testing.
