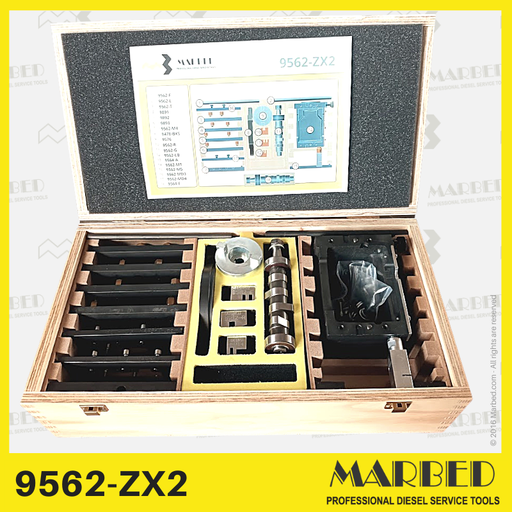

Preassembled configuration of the Marbed Modular Testing System for diesel injection pumps without internal camshaft.
Each kit includes the 9562-M1 cast-iron Cambox, precision spacers, mounting plates, and camshafts selected for specific pump families.
All components are supplied in custom wooden cases, ensuring perfect organization, protection, and quick setup on the bench.

The Marbed 8155-E flange warrants the centered clamping of the majority of Common Rail pumps (Bosch CP1, CP3, CP4, Delphi, Denso, VDO) on any test bench.
Equipped with four reduction rings (Ø 50, 60, 68, 80 mm) and compatible with CP1K pumps.
Requires the Marbed 9680-A universal cradle or similar support for proper mounting.

Tool box for assembly, disassembly and timing of CAV DPC pumps (17 particulars).

Tool box for disassembly and eassembly of PES…M BOSCH pumps and PES…RSF…Mercedes.
The set is supplied without the reamer 9333 because discontinued.

Tool box for assembly and disassembly of CAV rotary pumps.
(17 items - 24 particulars)

Size A in-line fuel injection pump service tools panel

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Tools kit for RQV-RSV pumps testing

Toolset for CP3 pumps. The following tools are included:
8133 - Clamping tool set for the pumping elements
8171 - Set of 6 sealing ring inserters
8172 - Puller for the shaft sealing ring (25mm)
8173 - Set of 7 O-ring inserters

Special tool for the disassembly and the aligned mounting of the nozzle and for preserving the pins from breaking during the rotation of the nozzle nut.
The tool is equipped with analogic gauge for the reference of the force applied on the injector body.
Similar to 0 986 610 130

Complete mounting and drive kit for Common Rail pumps CP3.4 (MAN), CP2 and HP0.
Based on Bosch specifications (Ø 107 mm pilot bore / Ø 130 mm bolt circle), the set ensures perfect alignment and safe operation with external oil lubrication during test bench runs.

The Marbed 9376-DK1 is a complete professional solution for diesel injection pipe maintenance and production. It combines a robust 20-ton hand-operated hydraulic press with three versatile forming kits, enabling technicians to quickly and precisely recreate steel pipe ends. This eliminates the need for costly line replacements and guarantees secure, leak-free sealing even at pressures exceeding 1,500 bar. Designed and manufactured in Italy, the 9376-DK1 is trusted by workshops worldwide for both common-rail and conventional diesel systems.

Weight: approx. 42 kg
Dimensions: 40 × 30 × 56 cm (H)

Toolset for the manual grinding and lapping of the ball seat on Bosch CRI and CRIN valves.

Tool box for timing of BOSCH-PDM1Q60F V pump on Focs engine

Extended configuration of special holders, probes and comparator (in wooden case) for the phasing of the Bosch VE rotary pumps.

Manometric assembly for the LDA testing bench. Manometer 0-2,5 armoned, shock resistant with steel inox mechanics

Box complete with universal comparator support to take dimension of rod stroke on pumps on line BOSCH P,P7100,8500,A,B,BV,BOSCH MW,M,RSF ando so on

Universal comparator supports box for delivery start on test bench and check for BOSCH P injection pumps setting on the engine

Tool box for Lucas Delphi DP200 pumps
