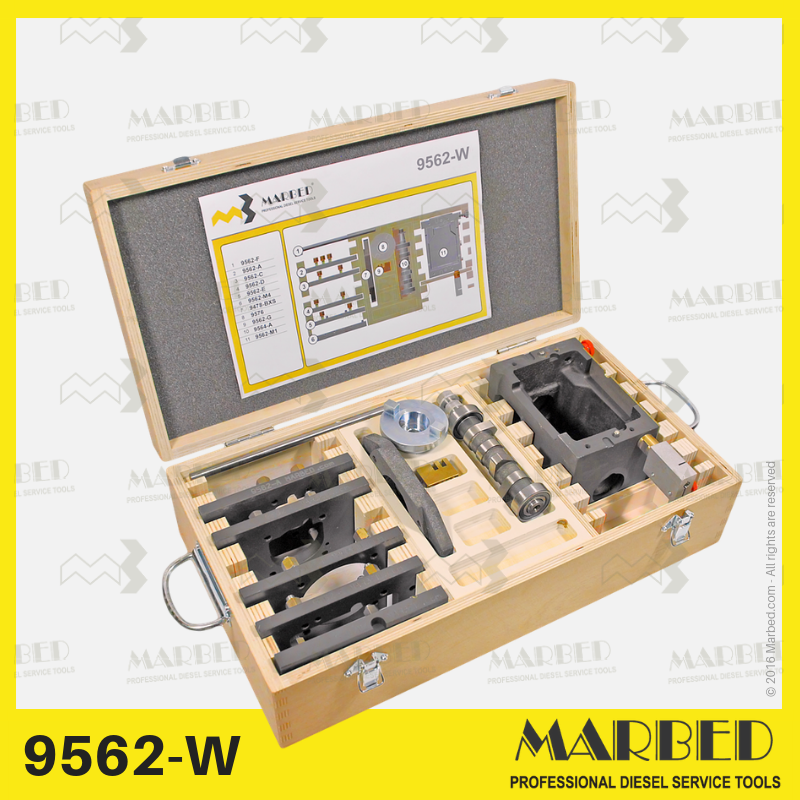

Modular Cambox - Predefined Configuration Kit
Preassembled configuration of the Marbed Modular Testing System for diesel injection pumps without internal camshaft.
Each kit includes the 9562-M1 cast-iron Cambox, precision spacers, mounting plates, and camshafts selected for specific pump families.
All components are supplied in custom wooden cases, ensuring perfect organization, protection, and quick setup on the bench.
🧰 Compatibility Overview
| Pump Family | Typical Configuration |
| Bosch PFR...1/2/3/4 K | 9562-W |
| Bosch PFR...1/2/3/4 K + Bosch PFM1Q + Zexel PFR...2/3/4 KX + Stanadyne + PFR1K Deutz + Nippondenso 2/3/4 | 9562-KW |
| Bosch PFR...1/2/3/4 K + Bosch PFM1Q + Bosch PFM1P90V + Zexel PFR...2/3/4 KX + Stanadyne + PFR1K Deutz + Nippondenso 1/2/3/4 + Yanmar | 9562-KWY |
| Zexel PFR...1/2/3/4 KX + PFR..3/4 MD + PFR..3/4 KD | 9562-ZX2 |
The background
Diesel specialists have long battled with testing camshaft-less pumps (PFR, PFM, PFE, etc.):
❌ Every pump family required a different cambox → expensive, space-consuming.
❌ No common standards → endless adjustments and shimming.
❌ Lost components, bent plates, missing camshafts → constant downtime.
❌ Disorganized benches → oil, clutter, and inefficiency.
💡 The Solution
The Marbed 9562-M1 Modular Cambox System is the one platform that simplifies the job and replaces them all:
A cast-iron base (9562-M1) ensuring perfect rigidity and repeatability.
Four predefined kits (9562-W, 9562-KW, 9562-KWY, 9562-ZX2) that cover every major pump family.
All components stored in precision wooden cases → clean, complete, and always ready.
💡 This turns the Cambox system into a long-term investment, not just a tool: a platform that grows with your workshop.
💼 Key Benefits
One universal system: replaces dozens of single-purpose camboxes.
Covers 20+ pump types (Bosch, Zexel, Denso, Yanmar, Stanadyne).
Precision cast-iron components for stability and accuracy.
Organized wooden cases → order, protection, and effortless transport.
Faster setup times – everything is labeled and within reach.
Expandable design – grow your kit as your service portfolio expands.
Professional image – clean, structured, and efficient workflow.
⚙️ Technical Data
| Specification | Description |
| Base unit | Cambox 9562-M1 (cast iron, machined) |
| Included components | Vary per configuration (see table below) |
| Supported pump types | Bosch PFR/PFM/PFE, Zexel KD/KX/MD, Denso, Yanmar, Stanadyne |
| Camshafts | 9564-A/B/C/E (included depending on kit) |
| Spacer sets | 9562-M4, 9562-M5 (as required) |
| Material | Cast iron (Cambox and plates) |
| Finish | Ground surfaces, precision alignment |
| Packaging | Wooden case with dedicated slots |
| Country of manufacture | Italy |
🧰 Organized in Wooden Cases
Each kit is supplied in a dedicated wooden storage case, designed to transform the workshop experience:
| Workshop Pain | Marbed Solution |
| Components scattered, oily, and lost | Each piece has its precise housing |
| Setups slow and confusing | Labeled compartments and grouped tools |
| Frequent damage to precision parts | Rigid wooden frame with shock protection |
| Unprofessional bench appearance | Clean, organized, impressive to customers |
📦 Kit Contents by Configuration
| Codice componente | Descrizione sintetica | 9562-W | 9562-KW | 9562-KWY | 9562-ZX2 |
| - | Wooden box | ✔ (1x) | ✔ (2x) | ✔ (3x) | ✔ (1x) |
9562-M1 | Cast-iron universacambox | ✔ | ✔ | ✔ | ✔ |
9478-BXS | Cambox Mounting flange | ✔ | ✔ | ✔ | ✔ |
9576 | Driving coupling | ✔ | ✔ | ✔ | ✔ |
| 9562-M4 | Spacer (15 mm) | ✔ | ✔ | ✔ | ✔ |
| 9562-M5 | Spacer (10 mm) | — | ✔ | ✔ | ✔ |
| 9564-A | 4 cyl camshaft (h 7mm) | ✔ | ✔ | ✔ | ✔ |
| 9564-B | 4 cyl camshaft (h 6mm) | — | ✔ | ✔ | ✔ |
| 9564-C | 1 cyl camshaft (h 10mm) | — | — | ✔ | — |
| 9564-E | 4 cyl camshaft (h 6mm) | — | — | — | ✔ |
| 9562-F | Sliding rod | ✔ | ✔ | ✔ | ✔ |
| 9562-H | Sliding rod | — | — | ✔ | — |
| 9562-L | Sliding rod | — | ✔ | ✔ | ✔ |
| 9562-G | Rack connector | ✔ | ✔ | ✔ | ✔ |
| 9562-I | Rack connector | — | ✔ | ✔ | ✔ |
| 9562-LB | Rack connector | — | ✔ | ✔ | ✔ |
| 9562-R | Rack connector | — | ✔ | ✔ | ✔ |
| 9562-A | Mounting plate (Bosch 1 cyl) | ✔ | ✔ | ✔ | — |
| 9562-B | Mounting plate (Bosch 1 cyl) SAME | — | ✔ | ✔ | — |
| 9562-C | Mounting plate (Bosch 2 cyl) | ✔ | ✔ | ✔ | — |
| 9562-D | Mounting plate (Bosch 3 cyl) | ✔ | ✔ | ✔ | — |
| 9562-E | Mounting plate (Bosch 4 cyl) | ✔ | ✔ | ✔ | — |
9562-N | Mounting plate (Nippondenso 1 cyl) | — | — | ✔ | — |
9562-M2 | Mounting plate (Nippondenso 2/3/4 cyl) | — | ✔ | ✔ | — |
9562-T | Mounting plate (Zexel PFR1KX) | — | — | — | ✔ |
| 9891 / 9892 / 9893-D | Mounting plates (Zexel PFR2/3/4KX) | — | ✔ | ✔ | ✔ |
| 9562-P | Mounting plate (Bosch PFM1P90V) | — | — | ✔ | — |
| TD9001 / TD9003 / TD9004 | Mounting plates (Yanmar/Deere 3 and 4 cyl) | — | — | ✔ | — |
TD9006 | Mounting plate (Yanmar 2K) | — | — | — | — |
9562-MD3 / 9562-MD4 | Mounting plate (Zexel MD/KD 3-4 cyl) | — | — | — | ✔ |
9562-S2 | Mounting plate (Bosch PFM1P100) | — | — | — | — |
| 9562-FX | Mounting plate (Bosch unit pump PDM1Q60F) | — | — | — | — |
⚠️ Kits can be expanded at any time by adding new plates, camshafts, or connectors according to pump requirements.
🧑🔧 Use Cases
Diesel injection workshops
Test bench manufacturers
Training and calibration centers
OEM service departments for small/industrial engines
Testing pumps without internal camshaft used to mean cluttered benches and mismatched tools.
Now, with the Marbed 9562-M1 Modular Cambox Kits, everything you need is in one organized wooden case — precise, clean, and expandable.
Each configuration (9562-W / 9562-KW / 9562-KWY / 9562-ZX2) includes the cast-iron 9562-M1 base, dedicated spacers, plates, camshafts, and accessories for the most common pump families (Bosch, Zexel, Denso, Yanmar, Stanadyne).
🧰 Choose the kit that matches your workshop’s daily work — and say goodbye to confusion, delays, and wasted time.
❓ FAQ
Q1. What makes these kits different from traditional camboxes?
Each is modular, expandable, and housed in a professional wooden case — precision tools kept organized and safe.
Q2. Are the wooden cases included?
Yes, every kit is supplied in its own wooden case with internal compartments.
Q3. Can I upgrade from W to KWY later?
Absolutely — the system is modular. You only add the missing parts.
Q4. What material are the components made of?
All camboxes and plates are made of high-grade cast iron for rigidity and precision.
Q5. Which kit is most popular?
The 9562-W Workshop Kit, ideal for Bosch pumps, is the most requested and cost-effective.
