预装配置的Marbed模块化测试系统适用于不带内置凸轮轴的柴油喷射泵。每个套件包含9562-M1铸铁凸轮箱、精密垫片、安装板以及针对特定泵系列选择的凸轮轴。所有组件均采用定制木箱包装，确保妥善收纳、妥善保护，并可在工作台上快速安装。

Marbed 8155-E 法兰可确保大多数共轨泵（博世 CP1、CP3、CP4、德尔福、电装、威迪欧）在任何测试台架上实现中心夹紧。配备四个减速环（Ø 50、60、68、80 毫米），并与 CP1K 泵兼容。需要 Marbed 9680-A 通用支架或类似支架才能正确安装。

Tool box for assembly, disassembly and timing of CAV DPC pumps (17 particulars).

Tool box for disassembly and eassembly of PES…M BOSCH pumps and PES…RSF…Mercedes.
The set is supplied without the reamer 9333 because discontinued.

Tool box for assembly and disassembly of CAV rotary pumps.
(17 items - 24 particulars)

Size A in-line fuel injection pump service tools panel

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Tools kit for RQV-RSV pumps testing

Toolset for CP3 pumps. The following tools are included:
8133 - Clamping tool set for the pumping elements
8171 - Set of 6 sealing ring inserters
8172 - Puller for the shaft sealing ring (25mm)
8173 - Set of 7 O-ring inserters

Special tool for the disassembly and the aligned mounting of the nozzle and for preserving the pins from breaking during the rotation of the nozzle nut.
The tool is equipped with analogic gauge for the reference of the force applied on the injector body.
Similar to 0 986 610 130

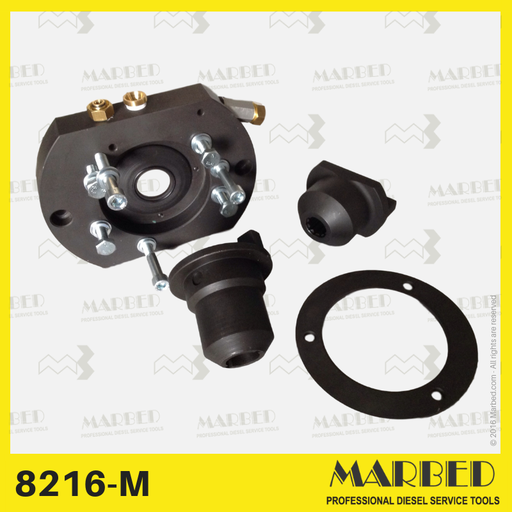

适用于共轨泵 CP3.4 (MAN)、CP2 和 HP0 的完整安装和驱动套件。该套件基于博世规格（Ø 107 毫米导向孔/Ø 130 毫米螺栓圈），确保在测试台架运行期间通过外部油润滑实现完美对准和安全运行。

Marbed 9376-DK1 是一套完整的专业解决方案，用于柴油喷射管路的维护与生产。它结合了一台坚固的 20 吨手动液压压力机 和 三套多功能成型模具，帮助技术人员快速、精准地再造钢管端口。这样可避免昂贵的管路更换，并确保在超过 1500 bar 的高压下依然实现可靠无泄漏的密封。9376-DK1 在意大利设计制造，深受全球维修车间信赖，适用于 共轨和传统柴油系统。
重量： 约 42 公斤
尺寸： 40 × 30 × 56 厘米（高）

Toolset for the manual grinding and lapping of the ball seat on Bosch CRI and CRIN valves.

Tool box for timing of BOSCH-PDM1Q60F V pump on Focs engine

Extended configuration of special holders, probes and comparator (in wooden case) for the phasing of the Bosch VE rotary pumps.

Manometric assembly for the LDA testing bench. Manometer 0-2,5 armoned, shock resistant with steel inox mechanics

Box complete with universal comparator support to take dimension of rod stroke on pumps on line BOSCH P,P7100,8500,A,B,BV,BOSCH MW,M,RSF ando so on

Universal comparator supports box for delivery start on test bench and check for BOSCH P injection pumps setting on the engine

Tool box for Lucas Delphi DP200 pumps
