Mounting plate for PFR pumps on 9562-M1
The Marbed 9562 Mounting Plates are precision cast-iron adapters that connect diesel injection pumps without internal camshaft to the Marbed 9562-M1 Modular Cambox.
Each plate reproduces the pump’s original mounting geometry and, when combined with the correct camshaft, sliding rod, rack connector, and spacer set, ensures perfect mechanical alignment and accurate injection timing.
Every pump family has its own flange design, bolt pattern, and body height — and each requires a specific mounting interface.
The 9562-series plates solve this by providing dedicated, ready-to-use interfaces for every major camshaft-less diesel pump (Bosch, Zexel, Denso, Yanmar, Stanadyne).
Machined from cast iron for dimensional stability and repeatable performance, these plates are key elements of the Marbed modular testing system.
Used together with the 9562-M1 Cambox base, 9564-series camshafts, and 9562-series rods, connectors, and spacers, they replicate real engine geometry directly on the test bench.
⚙️ Applications and Compatibility Table
| Pump Model | Cylinders | Plate Code | Required Camshaft | Sliding Rod | Rack Connector | Spacer Set | Notes / Typical Engines |

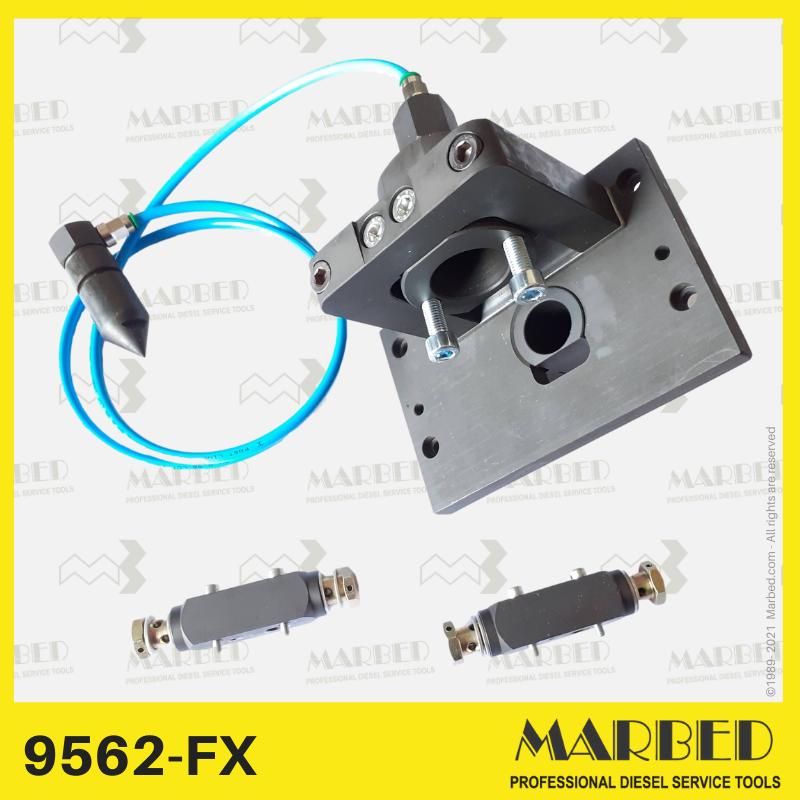

Bosch PDM1Q60F | 1 | 9562-FX | 9564-A | 9562-F | provided with 9562-FX | 9562-M4 | |
| Bosch PFM 1P 90V | 1 | 9562-P | 9564-C | 9562-F | 9562-FP (provided with 9562-P) | 9562-M4 | Deutz / SAME (PFM-1P-90V) |
Bosch PFM 1P 100 | 1 | 9562-S2 | 9564-C | provided with 9562-S2 | - | 9562-M4 | Bosch PFM-1P-100 |
Bosch PFR1K* | 1 | 9562-B | 9564-A | 9562-F | provided with 9562-B | 9562-M4 | Same |
| Bosch PFR..K Series | 1 | 9562-A | 9564-A | 9562-F | 9562-G | 9562-M4 | Bosch single-cylinder |
| 2 | 9562-C | 9564-A | 9562-F | 9562-G | 9562-M4 | Bosch twin-cylinder | |
| 3 | 9562-D | 9564-A | 9562-F | 9562-G | 9562-M4 | Bosch 3-cyl industrial | |
| 4 | 9562-E | 9564-A | 9562-F | 9562-G | 9562-M4 | Bosch 4-cyl PFR engines | |
Bosch Q | 1 | 9563-S | 9564-A | 9562-F | provided with 9563-S | 9562-M4 | |
| Denso “Mini” Series | 1 | 9562-N | 9564-B | 9562-F | 9562-I | - | Denso 1-cyl small engine |
| 2–4 | 9562-M2 | 9564-B | 9562-H | 9562-I | - | Multi-cyl compact Denso | |
| Stanadyne | 1 | 9562-M3 | 9564-A | 9562-F | provided with 9562-m3 | 9562-M4 | Test 2 pumps |
| Yanmar Series | 2 | TD9004 | 9564-A | 9562-F | 9562-G | 9562-M5 | Yanmar JD650 / JD750 |
| 3 | TD9001 | 9564-A | 9562-F | 9562-G | 9562-M5 | Yanmar K-type | |
Yanmar | 2 | TD9006 | 9564-A | 9562-F | 9562-G | Yanmar Type K (variant) | |
3 | TD9001 | 9564-A | 9562-F | 9562-G | |||
| Zexel PFR-KX Series | 1 | 9562-T | 9564-A | 9562-F | 9562-G | 9562-M4 | SAME / Kubota |
| 2 | 9891 | 9564-A | 9562-F | 9562-R | 9562-M5 | Zexel KD/KX 2-cyl | |
| 3 | 9892 | 9564-A | 9562-L | 9562-LB | 9562-M5 | Zexel KD/KX 3-cyl | |
| 4 | 9893-D | 9564-A | 9562-F | 9562-G | 9562-M5 | Zexel KD/KX 4-cyl | |
Zexel PFR-KD Series | 3 | 9562-MD3 | 9564-A | 9562-F | 9562-I | 9562-M5 | |
4 | 9562-MD4 | 9564-A | 9562-F | 9562-I | 9562-M5 | ||
Zexel PFR-MD Series | 3 | 9562-MD3 | 9564-E | 9562-F | 9562-I | - | |
4 | 9562-MD4 | 9564-E | 9562-F | 9562-I | - |
🧾 Spacer Set Selection
The 9562-M4 and 9562-M5 spacer sets adjust the pump height relative to the camshaft centerline.
Their use depends on the pump family and plate type:
| Spacer Set | Description | Typical Applications |
| 9562-M4 | Standard height spacers | Bosch, Stanadyne, Zexel 1-cyl |
| 9562-M5 | Compact height spacers | Denso, Yanmar, Zexel multi-cylinder |
