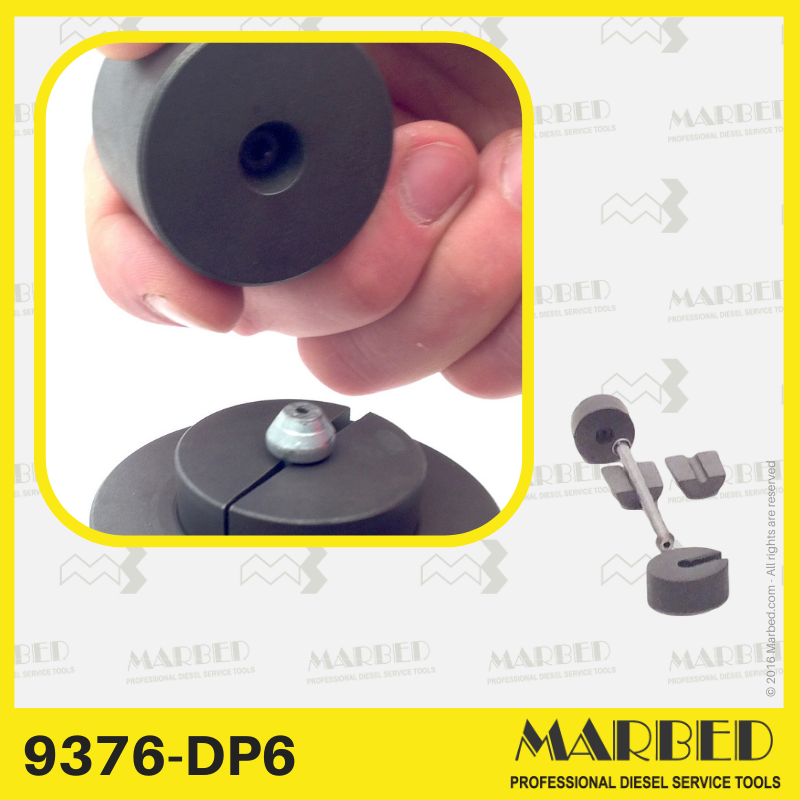

Forming Kit – 6 mm Conventional Diesel Pipes

The Marbed 9376-DP6 forming kit is the dedicated solution for shaping the ends of 6 mm conventional diesel pipes. Unlike common rail systems, these pipes require a simpler cone profile. The DP6 kit ensures perfect repeatability, durability, and sealing when paired with the Marbed 9376-D 20-ton press.

Key Benefits

• Tailored for 6 mm conventional diesel injection pipes

• Guarantees correct cone geometry for sealing and durability

• Includes forming die, half-shells, and protrusion gauge

• Conical retaining system ensures secure clamping and perfect tube positioning under load

• Modular Marbed system allows cost-effective, gradual toolset expansion

Key Features

• Precision-machined forming die (matrix) for 6 mm OD pipes

• Conical half-shells (“pliers function”) for secure tube holding

• Protrusion gauge ensures correct material protrusion before forming

• Compatible only with Marbed 9376-D manual hydraulic press

• Cone geometry optimized for conventional diesel systems

Operational Functions

• Pipe end flaring (nipple forming) for conventional diesel lines

• Quick installation into the 9376-D press using the retaining ring

• Secure conical retaining system guarantees alignment and stability under vertical load

• Designed for repeatable and durable results

Technical Data

• Pipe outer diameter: 6 mm

• Pipe wall thickness: not critical – the press adapts to different thicknesses

• Pipe type: conventional diesel injection systems

• Profile: standard cone

• Compatible press: Marbed 9376-D (20-ton manual hydraulic press)

• Supplied tools: forming die, conical half-shells, protrusion gauge

Use Cases

• Conventional diesel vehicles and machinery

• Repair workshops

• Mobile diesel service vans

• Industrial equipment with traditional injection systems

Kit Contents

• 1 forming die (matrix) for 6 mm conventional pipes

• 1 set of conical half-shells (“pliers function”)

• 1 protrusion gauge

⚠️ Note: the retaining ring needed to lock the half-shells is supplied with the 9376-D press. It is an integral, non-removable part of the press and not included in the kit.
