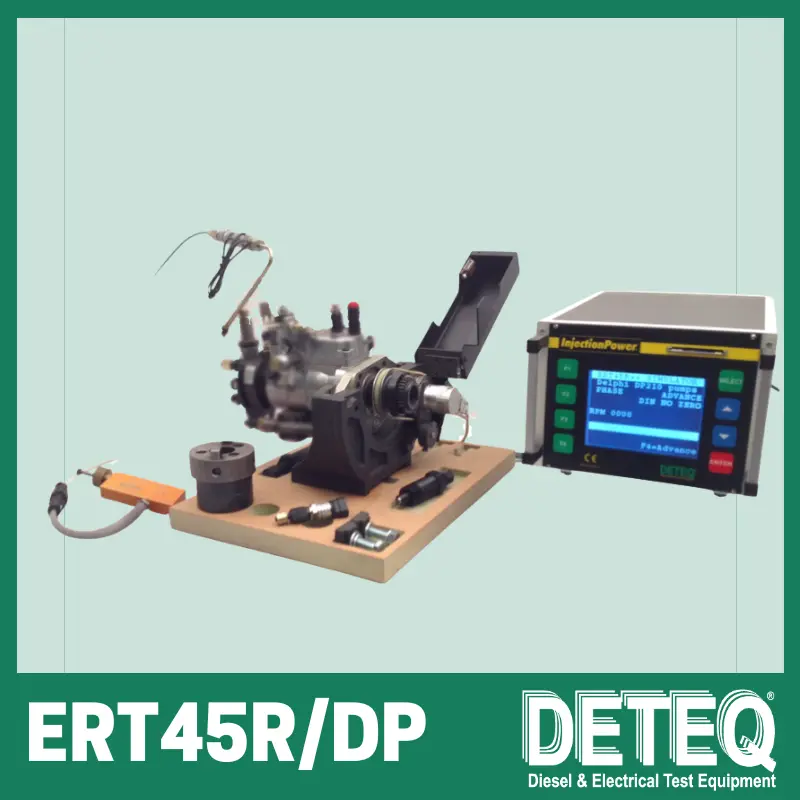

DETEQ ERT45R Electronic Simulator & Test Upgrade for Delphi DP2.. & DP3.. Pumps

The ERT45R Electronic Simulator is not a test bench, but an add-on ECU simulator that transforms your existing diesel test bench into a complete calibration system for Delphi DP2.. and DP3.. series pumps, including DP200, DP210, and DP310.

These pumps require dynamic timing and electronic control for proper calibration — functions traditionally available only on OEM benches such as the Hartridge AVM2-PC.

With ERT45R, workshops can perform the same advanced tests using their existing equipment, achieving OEM-level precision at a fraction of the cost.

🔸 Application Focus – Delphi DP210 & DP310

Delphi DP210 and DP310 pumps are hybrid mechanical-electronic systems requiring accurate coordination between hydraulic delivery, timing, and ECU-based control.

Their phase, advance, and carriage position (CPS) must be verified dynamically under operating conditions.

The ERT45R Simulator makes this possible by:

• Generating ECU-equivalent electrical signals to drive the pump
• Reading phase and advance via the AS25 sensor and CPS displacement sensor
• Supporting dynamic phase calibration and shaft lock functions
• Displaying all parameters (advance, displacement, flow, RPM) in real time

⚙️ With ERT45R, your existing bench gains OEM-grade functionality for Delphi DP210 and DP310 — without OEM dependency.

🔸 How It Works – Smartcard Programming System

At the core of ERT45R lies a universal electronic hardware platform.

Each pump family is activated by a dedicated smartcard that instantly loads the proper firmware, signal maps, and interface screens.

Insert the smartcard and the system automatically configures itself for that pump type.

💳 One ERT45R. Multiple pump families.

Insert the card, connect the sensors, and start testing.

Depending on the pump model, some ancillary modules (e.g. angular readers, brackets, or accumulators) may be required to enable all test functions.

All are plug-and-play within the ERT45R modular ecosystem.

🔸 Easy to Learn, Easy to Grow

With ERT45R, your technicians learn one interface and use it across every pump type.

No new software, no long retraining — only a few functions change with each smartcard.

🧠 Once you know one, you know them all.

That means:

• Faster learning and less downtime
• Fewer setup errors and more consistent results
• Faster transition to new pump types
• Real productivity gains every day

It’s simpler, faster, and smarter testing for every application.

🔸 Ancillary Equipment & System Expansion

The ERT45R is a universal simulator platform.

Specific applications may require ancillary hardware to ensure full functionality and accuracy.

All ancillary modules integrate directly with the ERT45R control unit and can be added anytime.

🔸 Key Benefits

• ⚙️ Full compatibility with Delphi DP2../DP3.. pumps – dynamic timing, advance & CPS verification
• 🧠 Built-in ECU simulation – drives the pump exactly like an engine ECU
• 🔌 Add-on module, not a test bench – fits any ISO 4008 test stand
• 💳 Smartcard configuration – quick setup, consistent interface
• 👨‍🔧 Easy to learn – one logic for all applications
• 🧩 Expandable design – extend to Bosch, Denso, Siemens, and Zexel
• 💰 Incremental investment – add programming kits or modules as needed

🔸 Technical Overview

🔸 Technical Data

🔸 Use Cases

• Diesel injection workshops & calibration centers
• Authorized Delphi repair service providers
• Test bench manufacturers & retrofitters

🔸 Kit Contents

• ERT45R control unit (81.01.080B)
• Angular reader mounting bracket (81.01.1A01)
• Integration kit DP2../DP3.. (81.01.1A35)
• Programming kit with smartcard (81.01.1035)
• AS25 advance sensor (81.01.1001)
• CPS sensor kit (81.01.1541)
• Connection cables & manual

🔸 Expansion & Upgrade

The same ERT45R control unit is used across all pump families.

Each new application is activated via a programming smartcard and, where required, specific ancillary equipment.

Your investment grows gradually as your service range expands.

🔸 Recommended Accessories

• VTR110 – fuel temperature & pressure monitor
• Marbed tools – pump mounting & timing sets (9356-A, 9478-E, 8132)
