Adapter Module for Dial Gauge Holder 9513 System (Bosch MW Pumps, FIAT)

Adapter Module for Dial Gauge Holder 9513 System (Bosch MW Pumps, FIAT)

EAN: M9513-KA

Part Number (SKU): MARBED 9513-KA https://www.injectionpower.com/web/image/product.template/5955/image_1920?unique=0b65518
(0 review)

This tool is used for adjusting the start of delivery and for measuring the plunger clearance at TDC. OEM Bosch ref. 1 683 350 066 / 1 682 012 008.

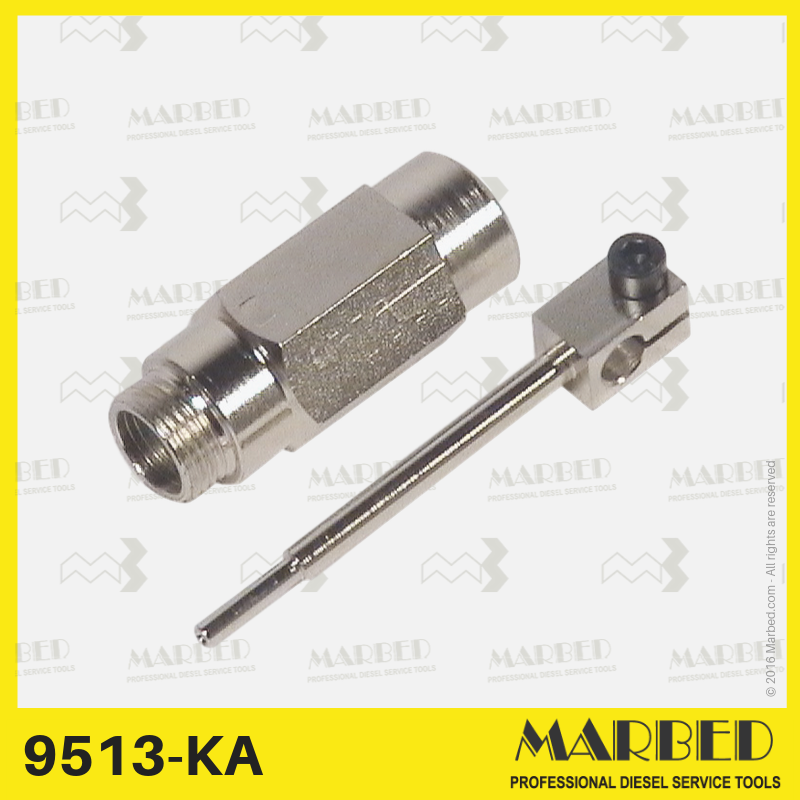

The Marbed 9513-KA is the dedicated adapter and tip designed for use with the 9513-N base body.

Once combined, they form the 9513-K complete dial gauge holder, equivalent to Bosch OEM references 1 688 130 135 / 1 682 012 008.

  • Thread: M18×1.5 (standard for Bosch MW FIAT pumps)

  • Application: Bosch MW pumps on FIAT diesel engines and other vehicles requiring M18×1.5 inspection port

  • OEM Bosch references: 1 683 350 066 / 1 682 012 008 (component level)

👉 Workshops that already own the 9513-N base can purchase only the 9513-KA adapter to extend their tool coverage without buying a full holder.

Key benefits

  • Converts 9513-N base into a complete start-of-delivery dial gauge holder (9513-K)

  • OEM equivalent to Bosch 1 683 350 066 / 1 682 012 008

  • Designed for FIAT MW pumps (M18×1.5)

    • Lower cost for workshops → no need to buy full tool, just add the adapter

🔍 Comparison table – 9513-K vs 9513-KB

VariantCompositionThreadApplicationOEM Bosch ref.
9513-K9513-N base + 9513-KA adapterM18×1.5Bosch MW pumps on FIAT (and S1000 PE)1 688 130 135 / 1 682 012 008
9513-KB9513-N base + KB adapterM18×1.5 (different tip geometry)Bosch MW pumps on Mercedes 5-cyl1 688 130 135


Register or Log In to Unlock Pricing and Purchase

Gain access to exclusive pricing and start shopping today!

Register Now Log In

This combination does not exist.

Contact Us
The Marbed 9513-KA is an adapter/tip module for the 9513-N base.
Together, they form the 9513-K dial gauge holder, used to measure start of delivery on Bosch MW inline pumps installed on FIAT diesel engines.

FAQ

Q1. What is the 9513-KA?

It is the adapter/tip module that, combined with 9513-N base, creates the 9513-K dial gauge holder.

Q2. Which pumps does it cover?

Bosch MW inline pumps used in FIAT diesel engines (M18×1.5).

Q3. What are the OEM Bosch references?

1 683 350 066 / 1 682 012 008.

Q4. Can I buy it separately?

Yes, workshops can buy 9513-KA alone if they already own the 9513-N base.
