25 mm conical coupling to drive diesel pumps on any test bench. Length 100, teeth 12 mm
The puller 9463 is recommended to unplug the shaft.

Swivel vice for Common-rail pumps

Bracket for assembly / disassembly of common rail pumps, on the workbench.

The circular support must be installed on revolving bases (ref. 8132 or 9260).
The system consists of a circular ring support, on which the (removable) bracket with adjustable projection is mounted, which allows to press the tappets. The circular holder holds an interchangeable round flange, which can rotate 360 degrees and can be locked in any position.
The internal flange allows to fix CP1, CP3, CP4, HP1, HP3, HP4, Delphi and VDO pumps.
Similar to 0 986 612 794

As an additional option, the following optional flanges are also available:
- 8131, for CP3.4 pumps
- 9402, for mechanical pumps A, M, VE, DPC

Torx bit
Similar to 0 986 613 145

The Marbed 8155-E flange warrants the centered clamping of the majority of Common Rail pumps (Bosch CP1, CP3, CP4, Delphi, Denso, VDO) on any test bench.
Equipped with four reduction rings (Ø 50, 60, 68, 80 mm) and compatible with CP1K pumps.
Requires the Marbed 9680-A universal cradle or similar support for proper mounting.

10 mm Oldham coupling to drive diesel pumps on any test bench.

9 mm Oldham drive coupling for CP3 (FIAT) ans Siemens pumps on any test bench.
Similar to 1 685 702 090

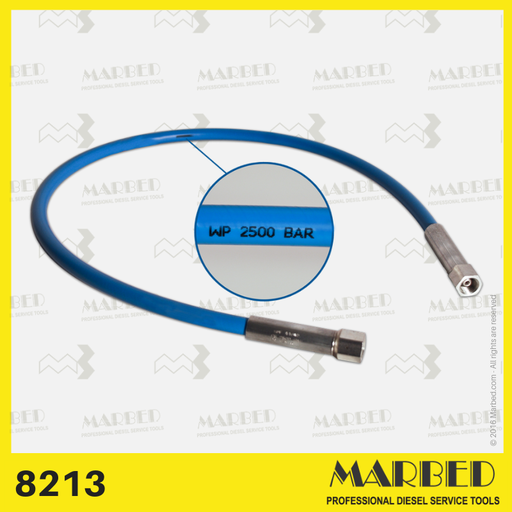

Flexible High pressure line L=600 mm. - M12x1,5 - M12x1,5

Flexible pipe ( cr 2500BAR) to connect the high pressure delivery from the pump outlet to the rail. Nuts 14x15 / 14x1,5. Similar to 1 680 712 324

Inserter bracket and oil seal for CP1 and CP3 pumps

Interchangeable mounting plate for CP3 pumps, to be used in conjuction with the operating flange 8130.

This device allows to monitor the pump body pressure (5 BAR).
It is also equipped with ball valve, to measure the negative pressure generated by the pump.
Caution: Not all test benches are able to supply the amount of flow required by the comon rail pumps. Therefore, it is crucial to monitor that, during the test, the pump does not go into cavitation.

Complete mounting and drive kit for Common Rail pumps CP3.4 (MAN), CP2 and HP0.
Based on Bosch specifications (Ø 107 mm pilot bore / Ø 130 mm bolt circle), the set ensures perfect alignment and safe operation with external oil lubrication during test bench runs.
