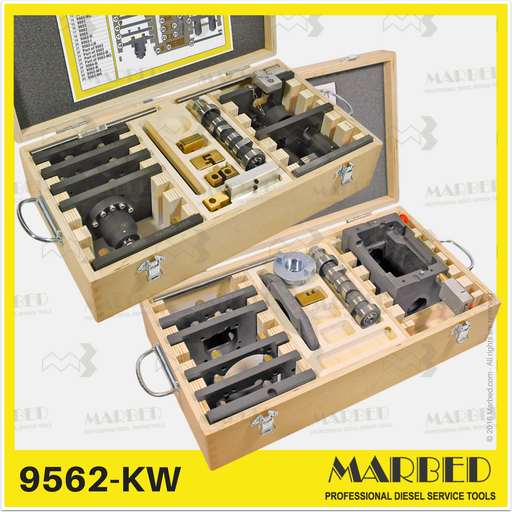

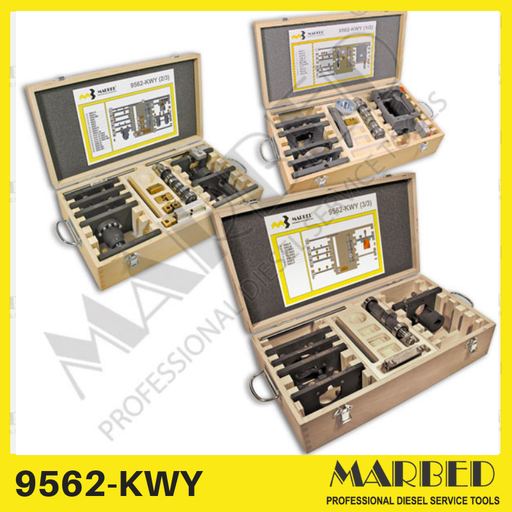

Preassembled configuration of the Marbed Modular Testing System for diesel injection pumps without internal camshaft.
Each kit includes the 9562-M1 cast-iron Cambox, precision spacers, mounting plates, and camshafts selected for specific pump families.
All components are supplied in custom wooden cases, ensuring perfect organization, protection, and quick setup on the bench.

The Marbed 9680-A, made of durable cast iron with precision machining, delivers exceptional stability and accuracy for centered diesel pump mounting and testing.

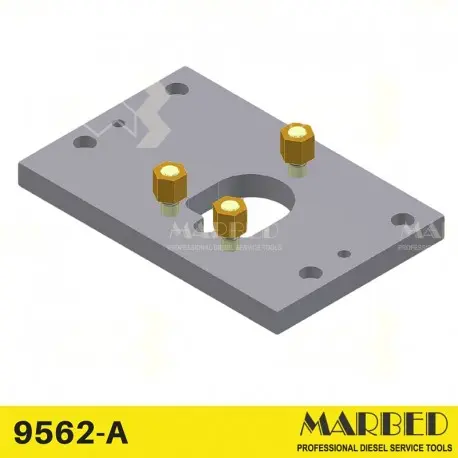

The Marbed 9562 Mounting Plates are precision cast-iron adapters that connect diesel injection pumps without internal camshaft to the Marbed 9562-M1 Modular Cambox.
Each plate reproduces the pump’s original mounting geometry and, when combined with the correct camshaft, sliding rod, rack connector, and spacer set, ensures perfect mechanical alignment and accurate injection timing.

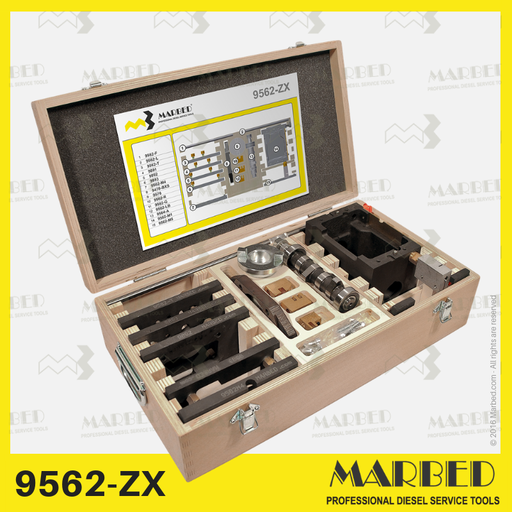

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)

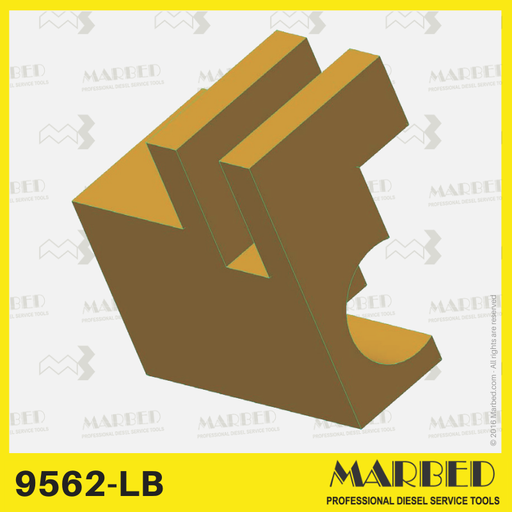

- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )

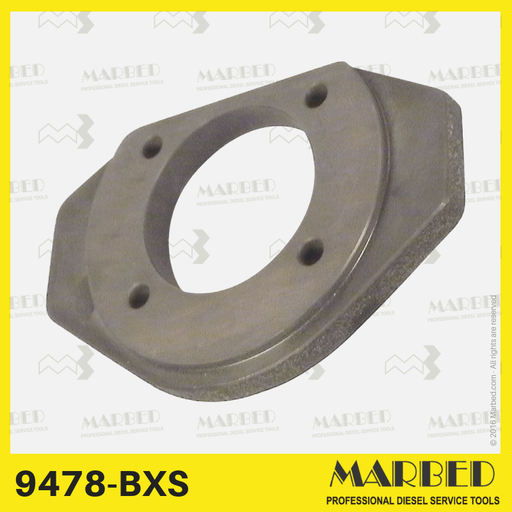

- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

For pentagonal bolts on Zexel PFR-KX pumps.
Similar to Zexel 157914-3100, Bosch 9 681 610 122.

The adapter can be also used for DTC determination and timing setting. Similar to Lombardini 1460.074.

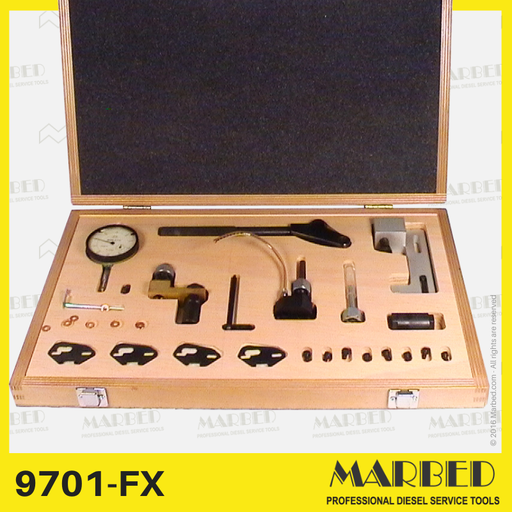

Tool box for timing of BOSCH-PDM1Q60F V pump on Focs engine
