Preassembled configuration of the Marbed Modular Testing System for diesel injection pumps without internal camshaft.
Each kit includes the 9562-M1 cast-iron Cambox, precision spacers, mounting plates, and camshafts selected for specific pump families.
All components are supplied in custom wooden cases, ensuring perfect organization, protection, and quick setup on the bench.

The Marbed 8155-E flange warrants the centered clamping of the majority of Common Rail pumps (Bosch CP1, CP3, CP4, Delphi, Denso, VDO) on any test bench.
Equipped with four reduction rings (Ø 50, 60, 68, 80 mm) and compatible with CP1K pumps.
Requires the Marbed 9680-A universal cradle or similar support for proper mounting.

The Marbed 9680-A, made of durable cast iron with precision machining, delivers exceptional stability and accuracy for centered diesel pump mounting and testing.

- The Marbed 9423-U is a pair of brackets designed for secure and centered mounting of diesel injection pumps on Bosch-standard test benches.
- Compatible with Bosch part numbers 1 688 030 153 (56 mm radius) and 1 688 030 147 (45 mm radius).
- Supports various pump models, including PE..A, P7..(A), NP-PE..A.. Zexel, CMS... Sigma, CMX... Sigma, PE..P..800..., and more.

The flange 9478-V4 warrants the centered clamping of the Denso ECD-V4 diesel fuel injection pumps, on any test bench.
The flange requires 9680-A universal cradle or similar.

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.

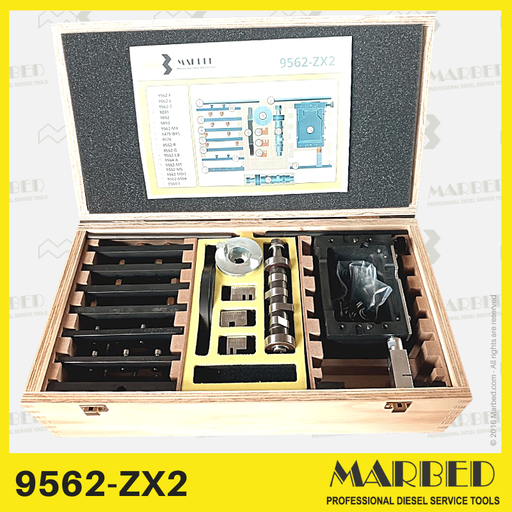

This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Technical specifications:
- centering height: 110 mm
- guide 20 mm

Interface to be assembled on the flange 8130 and 9478-CR for fixing Delphi cr pumps as R9042A040A or R9042A014A and similars.

Flange for fixing ZEXEL VP pumps on test benches. It requires the universal bracket 9680-A)

The Marbed 9422-U brings precision and adaptability to your diesel pump testing needs, with compatibility ranging from Bosch-standard models to Denso HP0 pumps. Built for professionals.

High-precision machined cast iron flange with a 115 mm hub diameter. Compatible with H-pumps (MAN, RVI), Bosch 1 685 720 239, and Marbed 9680-A, 9601, and swivel base 9260 systems for advanced pump testing and maintenance.

Warrants the centered clamping of the pumps having 50 mm hub diameter, on any test bench. The flange requires 9680-A universal cradle or similar.

1 Cradle
1 Flange for lubrication system
1 Coupling
1 Lubrication inlet
1 Forward bracket
1 Lateral bracket
1 Back bracket

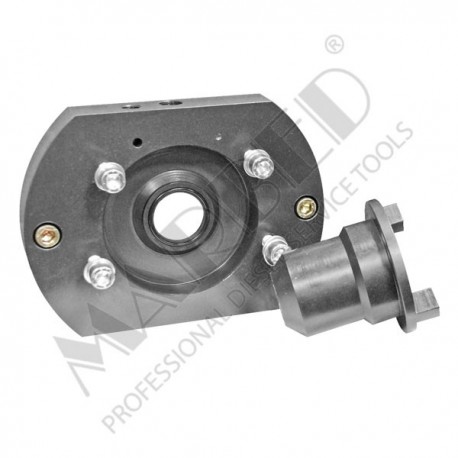

Complete mounting and drive kit for Common Rail pumps CP3.4 (MAN), CP2 and HP0.
Based on Bosch specifications (Ø 107 mm pilot bore / Ø 130 mm bolt circle), the set ensures perfect alignment and safe operation with external oil lubrication during test bench runs.

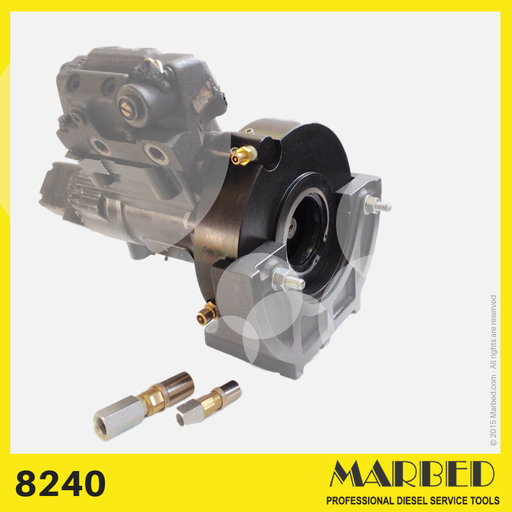

Precision flange designed for Cummins Common Rail injection pumps.
Features Ø 110 mm pilot bore and Ø 140 mm bolt circle (4×M10) for accurate centering and secure mounting on test benches.
Compatible with Marbed cradles and equipped for use with oil-tight coupling to ensure safe lubrication during operation.
