130 . ISO test equipment

High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 600 mm
- nuts: M14x1,5 mm - M12x1,5 mm
Similar to Bosch reference 1 680 750 014, Hartridge AHP117, Denso 95091-10260
Marbed® 9148-B Quick-Release Hydraulic Connector
A versatile and innovative tool designed for diesel injection specialists, the Marbed® 9148-B simplifies the connection and disconnection of hydraulic nuts during testing operations. Featuring a quick-release mechanism, it eliminates the need for spanners, ensures leak-free dynamic pressurization, and accommodates both M12x1.5 and M14x1.5 threads. Its ergonomic handle and durable design make it an essential companion for repetitive tasks.
ISO Test Injector Type IX
ISO Test Injector Type VIII
ISO Test Injector Type VII
Complete test injector (ISO 14681) similar to BH 1 688 901 106 type VII- opening pressure 250 BAR - orifice plate ø 0,8 mm
ISO Test Injector Type IV
ISO test injector 1 688 901 009 (0 681 343 009) type IV - opening press. 172 BAR
ISO Test Injector Type III
ISO test injector ( BH 1 688 901 019) type III - opening pressure 207 BAR - orifice plate ø0.8 mm
ISO Test Injector Type II (Orifice Plate ISO 7440)
Orifice-plate calibrating injector per ISO 7440 used for inline PES pump testing (6- to 12-cylinder units).
ISO Calibrating Nozzle (Test Nozzle), NOT for engine use
Reference calibrating nozzle for ISO test injectors, used to standardize pump tests across benches and workshops. Not for engine installation. Ensures comparable fuel-delivery data per ISO test methods.
ISO Test Injector Spring – Size S – Marbed 84.30.xxx
Calibrated spring for ISO test injectors, ensuring correct nozzle opening pressure and repeatable pump test results.
ISO Calibrated Orifice Plates for Test Injectors
Precision calibrated orifice plates designed for ISO test injectors (ISO 7440 / ISO 14681).
Available in diameters from 0.4 mm to 0.8 mm, they ensure repeatable, standardized flow conditions during diesel pump calibration.
ISO injectors holder
Holder for test bench, allowing to install 6+6 test injectors with 6 reinforced quick connections pipes for hight pressure application and male/female fittings - 20x1,5mm.
Quick release connection
Reinforced quick release connection dumper holder side
Rilsan flexible hose
Rilsan flex.hose with reinforced quick connections for high pressure complete with male/female fittings 20x1,5
High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 6 mm
- internal diameter: 1,6 mm
- thickness: 2,2 mm
- length: 350 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 085

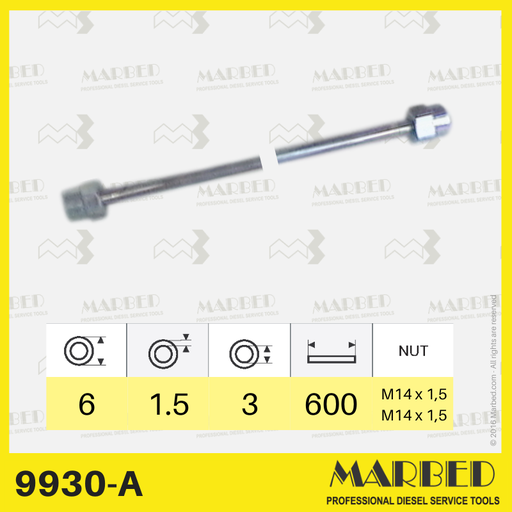

High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 6 mm
- internal diameter: 3 mm
- thickness: 1,5 mm
- length: 600 mm
- nuts: M14x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 015, Hartridge AHP121
High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 8 mm
- internal diameter: 3 mm
- thickness: 2,5 mm
- length: 1000 mm
- nuts: M14x1,5 mm - M14x1,5 mm
Similar to Bosch 1 680 750 075, Hartridge AHP124
High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 840 mm
- nuts: M14x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 028

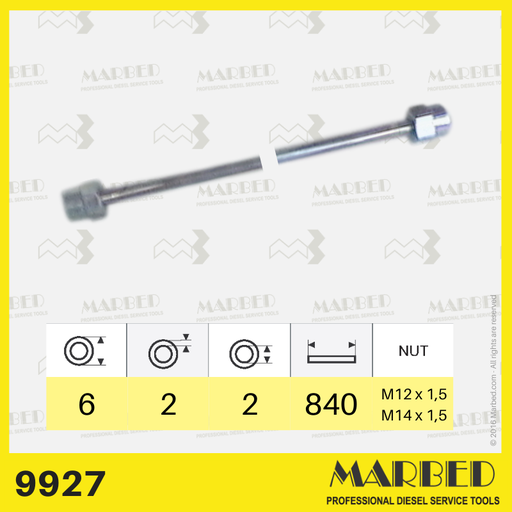

High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 840 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 017, Hartridge AHP118, Denso 95095-10060
TUBO 6X2X600 14/14 (1 680 750 008)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 600 mm
- nuts: M14x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 008, Hartridge AHP119, Denso 95091-10280
