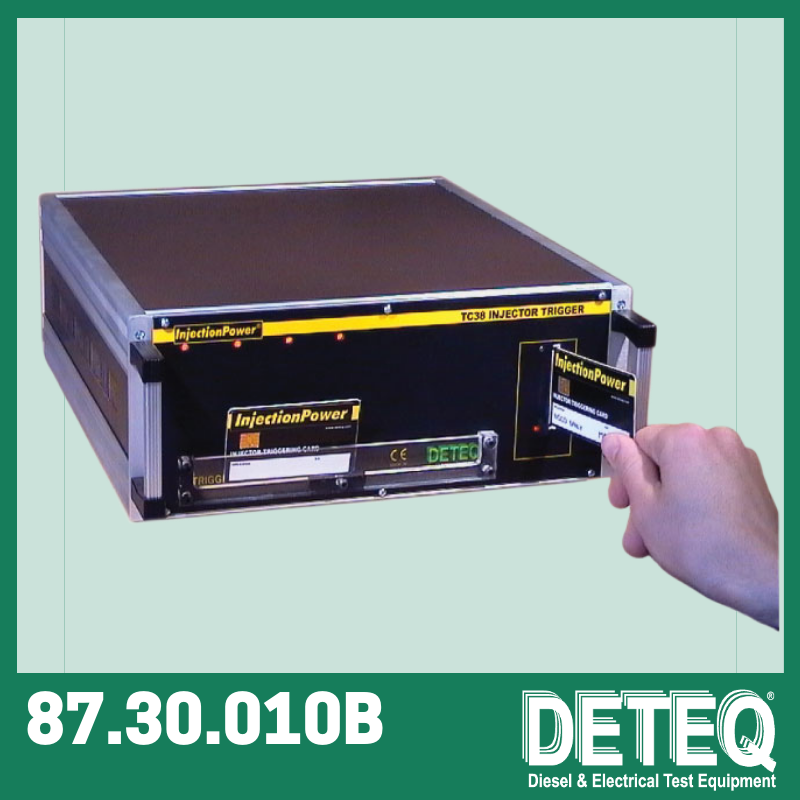

TC38 - Triggering unit for common-rail injectors

Part Number (SKU): 87.30.010B
(0 review)

TC38 - Injector triggering unit for common-rail injectors.
This unit has been developed as a module, to be used in two main applications:
- in conjunction with the DIT31 test bench, to test any common rail injector
- in conjunction with the ERT45R simulator, to make running the complete common rail system (pump+rail+injectors) on any test bench.
Main features:
- Triggering command for electromagnetic actuators (always provided)
- Triggering command for piezoelectric actuators (provided as optional, by the CRP extension)
- Ready to multiple injection technology (pre-injection, main injection, recovery injection)
- no manual adjustment is required, in fact all the parameters necessary to generate the appropriate pulse(s) are memorized in special smartcards (triggering cards)
- Basic triggering cards are provided to acquire the test parameters of any brand new injector. These figures can be used to compare the test results of injectors having the same part number.
- In addition to the basic triggering cards, specific triggering cards (complete with ready-to-use test data) are available for the some of Bosch, Delphi, and Denso injectors.
- when used with ERT45R simulator, the RPM input is available for the dynamic triggering till 4 injectors, automatically in specific way at different speeds. Multiples of additional 4 injectors can be added, as option.
- 24 months warranty. User's and servicing manual.

Prices are available to registerd user only. Login or Register
