ERT45R Programming Kit for Delphi DP2..–DP3.. Rotary Pumps

The DETEQ 81.01.1035 ERT45R Programming Kit upgrades the ERT45R test system to handle Delphi DP2.. and DP3.. electronically controlled rotary diesel pumps.

By loading the dedicated software via the supplied smartcard, the control unit becomes capable of timing acquiring and setting, advance piston travel measurement in degrees or millimeters, and CPS (Carriage Position Sensor) reading — enabling complete electronic characterization of the pump during test bench operation.

Key Benefits

• Expands ERT45R capabilities to test Delphi DP2.. and DP3.. pumps

• Enables full digital simulation of electronic control functions

• Simplifies setup with pre-calibrated software and dedicated wiring

• Reduces testing time and ensures repeatable, manufacturer-level results

• Supplied as a ready-to-use package with all required components

Key Features

• Smartcard containing specific software for DP2../DP3.. test management

• Base cable for 81.01.1A01 digital timing bracket connection

• Instrumented injection reference sensor cable

• User manual with setup procedures and pump-specific test parameters

• Plug-and-play installation on ERT45R control unit

Operational Functions

• Loads dedicated Delphi DP2../DP3.. control software onto the ERT45R unit

• Simulates electronic control signals (advance, timing, fuel delivery)

• Displays live parameters such as injection reference and angular advance

• Interfaces with 81.01.1A01 bracket and sensor for angle-based measurement

• Provides pass/fail diagnostics according to programmed pump profiles

Technical Data

Use Cases

• Electronic testing and calibration of Delphi DP2../DP3.. rotary diesel pumps

• Simulation of injection advance and control solenoids on test benches

• Integration in ERT45R-equipped workshops and test facilities

• Development and service applications for digital diesel systems

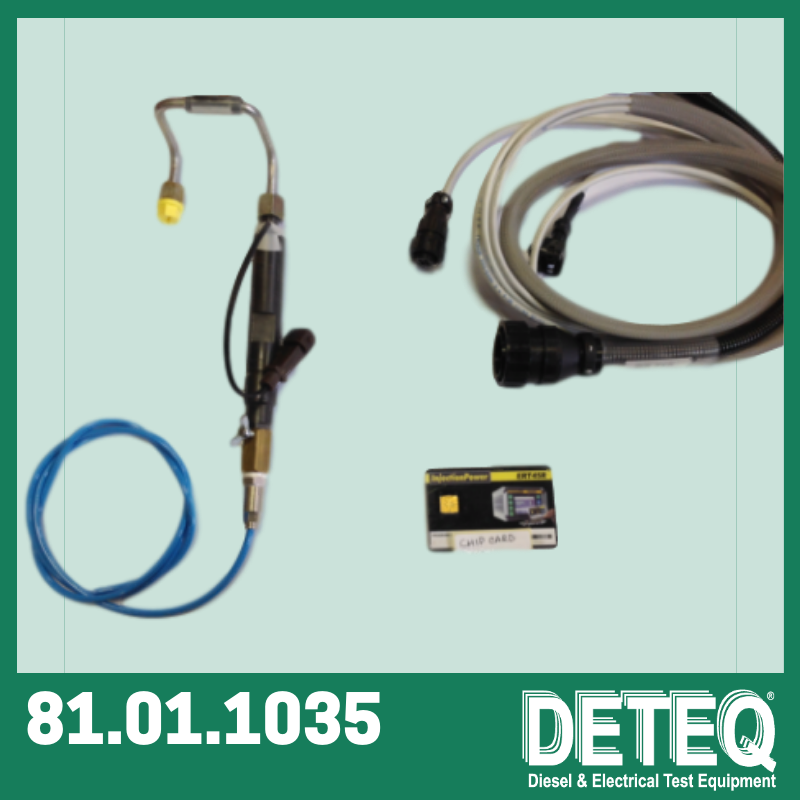

Kit Contents

• Smartcard containing ERT45R software

• Base connection cable for 81.01.1A01 bracket

• Instrumented injection reference sensor cable

• User manual (EN)
