Electronic Advance Piston Travel Sensor

The DETEQ 81.01.1001 Electronic Advance Piston Travel Sensor is designed for measuring the displacement of the advance piston in rotary diesel pumps such as Bosch VE, Delphi/Lucas DPA, DPC, DPS, and DP200.

It provides an electronic signal proportional to piston movement, allowing the test bench operator to monitor the injection timing advance electronically with high precision.

When connected to DETEQ measuring and simulation systems (DAR25, AR60N, or ERT45R), the displacement can be displayed in either millimeters or angular degrees, depending on the pump type and calibration scale.

Key Benefits

• Enables electronic measurement of advance piston travel on rotary pumps

• Eliminates mechanical gauge setup and reduces adjustment time

• Compatible with DETEQ control systems for real-time visualization

• Allows zero-set function for custom reference positioning

• Supplied as a ready-to-use kit with adaptors for major pump families

Key Features

• Inductive electronic sensor with high linearity and repeatability

• Compatible with DETEQ cable and plug standard

• Measures displacement of the timing advance piston in rotary diesel pumps

• Output signal interpreted by DAR25, AR60N, or ERT45R modules

• Zero-set function for easy reference calibration

• Supplied with mechanical adaptors for Bosch VE, DPA, DPC, DPS, DP200 pumps

Operational Functions

• Converts piston travel into an electrical signal for digital readout or simulation

• Displays advance position in mm or degrees depending on the control unit used

• Works in combination with:

  • DAR25 – digital advance reader

  • AR60N – simulator for DPCN pumps

  • ERT45R – universal electronic pump simulator

• Ready for direct installation on compatible rotary pumps

Technical Data

Use Cases

• Test and calibration of rotary diesel pumps (mechanical or electronic)

• Verification of injection timing advance and hydraulic actuator response

• Integration with DETEQ control and simulation modules on ISO4008 test benches

• Training and development applications for diesel service centers

Kit Contents

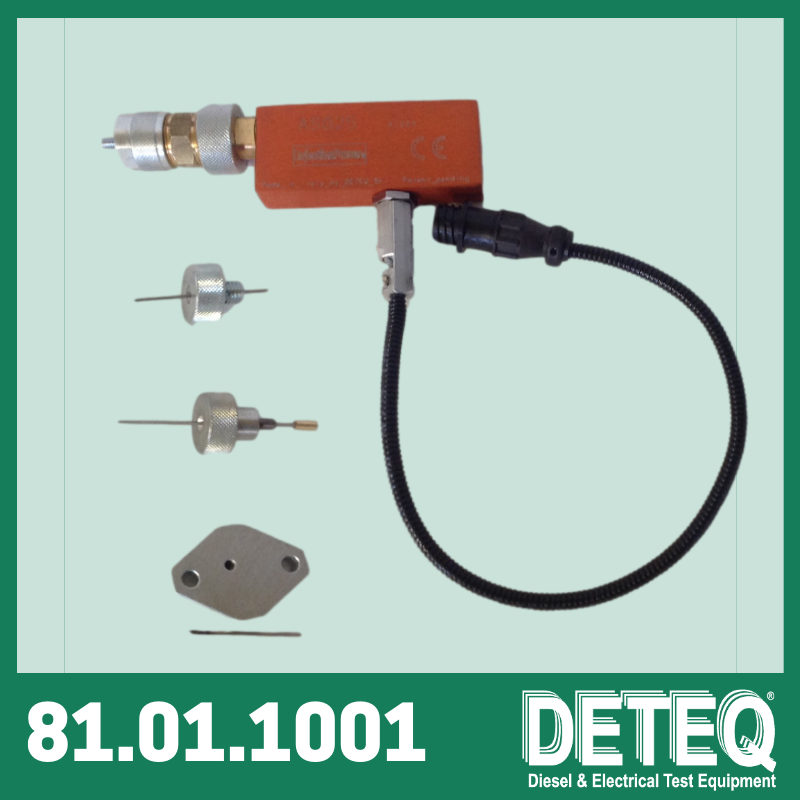

• Advance piston travel sensor (AS25)

• Adaptor set for Bosch VE, DPA, DPC, DPS, DP200 pumps
