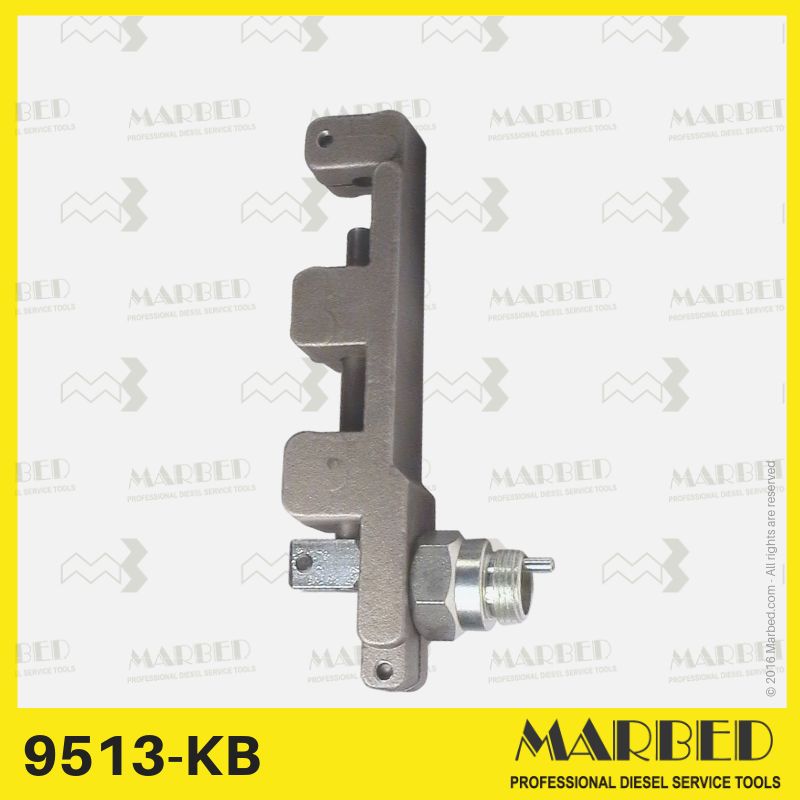

Dial Gauge Holder for Start of Delivery on Bosch MW Pumps (Mercedes 5-Cyl)

Dial Gauge Holder for Start of Delivery on Bosch MW Pumps (Mercedes 5-Cyl)

EAN: 9513-KB

Part Number (SKU): MARBED 9513-KB https://www.injectionpower.com/web/image/product.template/5414/image_1920?unique=28c80b0
(0 review)

This tool is used for adjusting the start of delivery and for measuring the plunger clearance at TDC. Equivalent to Bosch 1 688 130 135.

The Marbed 9513-KB is a professional workshop tool designed for timing adjustment on Bosch MW injection pumps for Mercedes 5-cylinder diesel engines.

It allows precise dial gauge measurement of the start of delivery by positioning the comparator directly on the pump plunger.

Key details

  • Modular construction:

    • Uses the common 9513-N base

    • Equipped with a special adapter/tip optimized for Mercedes MW pumps

  • OEM Bosch reference: 1 688 130 135

  • Function: Detects the exact moment the plunger closes the intake port, ensuring correct injection timing

👉 This version differs from the 9513-K (FIAT) by the shape and geometry of the feeler tip, while sharing the same thread size (M18×1.5).

Key benefits

  • Designed specifically for Mercedes 5-cylinder MW pumps

  • Shares the 9513-N base with other 9513 variants (cost saving for workshops)

  • OEM equivalent to Bosch 1 688 130 135

  • Direct, precise, and repeatable measurement of start of delivery

  • Robust construction for professional diesel service use

Register or Log In to Unlock Pricing and Purchase

Gain access to exclusive pricing and start shopping today!

Register Now Log In

This combination does not exist.

Contact Us
Dial gauge holder for Bosch MW pumps used on Mercedes 5-cylinder engines. Modular version with 9513-N base and special adapter. Equivalent to Bosch 1 688 130 135.

FAQ

Q1. What is the Marbed 9513-KB used for?

To measure the start of delivery (injection timing) on Bosch MW pumps for Mercedes 5-cylinder engines.

Q2. What makes it different from 9513-K?

The adapter/tip geometry: KB is for Mercedes MW pumps, while K is for FIAT MW pumps. Both use the same 9513-N base.

Q3. What is the Bosch OEM reference?

Bosch 1 688 130 135.

Q4. What thread size does it use?

M18×1.5, same as 9513-K, but with different tip shape.

Q5. Can I buy the KB adapter separately?

Yes, workshops that already own the 9513-N base can purchase only the KB adapter to expand coverage.
