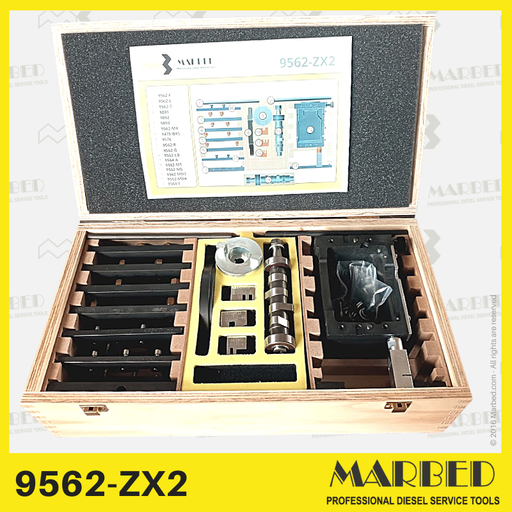

A Marbed moduláris vizsgálórendszer előre összeszerelt konfigurációja belső vezérműtengely nélküli dízel befecskendező szivattyúkhoz. Minden készlet tartalmazza a 9562-M1 öntöttvas bütyökdobozt, precíziós távtartókat, szerelőlapokat és az adott szivattyúcsaládokhoz kiválasztott vezérműtengelyeket. Minden alkatrész egyedi faládákban kerül szállításra, ami tökéletes elrendezést, védelmet és gyors beállítást biztosít a munkapadon.

The InjectionPower Loyalty Program is the platform of advantages specifically designed for those who deal with pump and injector repairs,​ planning to invest upwards of 5000 EUR in excellence.
STARTER, PREMIUM, and ELITE profiles are available.
The membership automatically renews on a yearly basis.

> > >Refer to the detailed features and benefits of each tier, as described here below.

The ERT45R Control Unit is the core of a universal testing system designed for electronically controlled diesel injection pumps, compatible with any test bench. This innovative simulator has been developed through extensive research, resulting in a versatile device that is programmable via smartcards (microchip cards). This feature aligns perfectly with modern operational requirements.
The ERT45R is a long-term investment, allowing for easy expansion through a selection of available programming kits—21 options are currently available. Each kit includes a programming card (software), a detailed instruction manual with step-by-step illustrations, base cables (2 meters in length), and adapter cables tailored for specific pump connectors. With a straightforward setup, at least one programming kit is necessary for functionality, making the ERT45R an essential tool for professionals seeking to enhance their testing capabilities while ensuring flexibility and efficiency in their work environment.

High accuracy electronic tool to test and trig the electromagnetic actuator of Bosch CRI and CRIN injectors and automatically relief the ball lift for the 3rd stage repair.

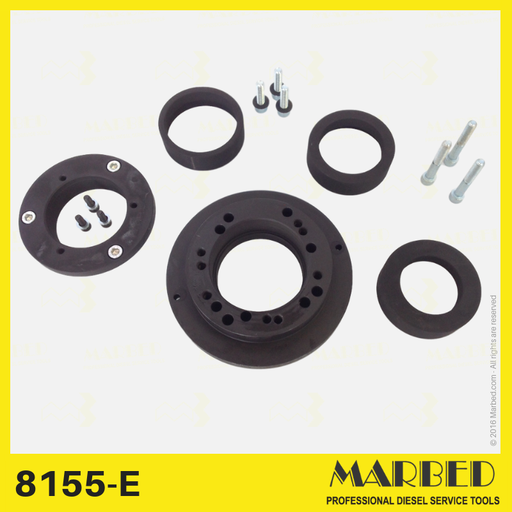

A Marbed 8155-E karima garantálja a legtöbb Common Rail szivattyú (Bosch CP1, CP3, CP4, Delphi, Denso, VDO) központos rögzítését bármilyen tesztpadon. Négy reduktorgyűrűvel (Ø 50, 60, 68, 80 mm) van felszerelve, és kompatibilis a CP1K szivattyúkkal. A megfelelő rögzítéshez Marbed 9680-A univerzális bölcső vagy hasonló tartó szükséges.

Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 600 mm
- nuts: M14x1,5 mm - M12x1,5 mm
Similar to Bosch reference 1 680 750 014, Hartridge AHP117, Denso 95091-10260

Swivel vice for Common-rail pumps

Master diesel pump maintenance with the Marbed 9260 Swivel Vice. Featuring 360-degree rotation, robust construction, and ergonomic handling, it ensures precision, comfort, and efficiency in every task.

Tool box for assembly, disassembly and timing of CAV DPC pumps (17 particulars).

Hand pump for calibrating and checking the operations of the diesel injectors
- precise adjustment of the injection pressure (adjust the opening pressure of the injection nozzle)
- control of the spray atomization (pattern and vibration characteristics)
- control tightness (leaks)
- equipped with bypass valve for the manometer.
Dial: 0 -> 400 bars.
Tank fitted with a filter
Supplied with 2 connection pipes: 14-14 and 14-12 mm

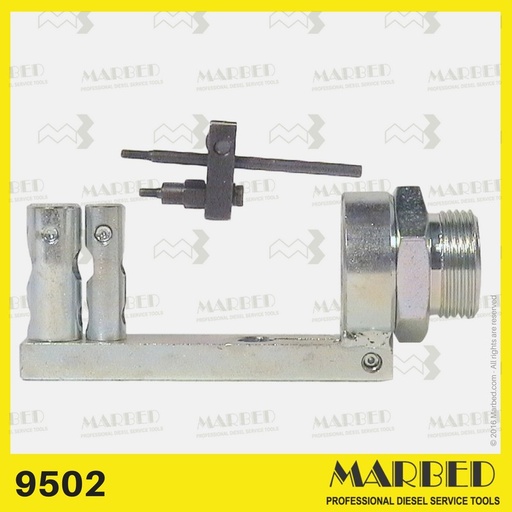

Közvetlen mérőóra tartó Bosch PE/P szivattyúkhoz 24×1,5 mm-es menettel (18 mm-es kinyúlás). Kompatibilis a 9502-C és 9483-K19 adapterekkel.

The Marbed 9680-A, made of durable cast iron with precision machining, delivers exceptional stability and accuracy for centered diesel pump mounting and testing.

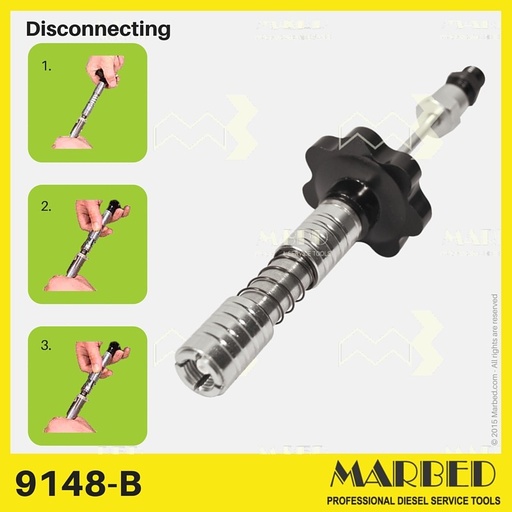

A Marbed® 9148-B egy sokoldalú és innovatív eszköz, amelyet dízelbefecskendező szakemberek számára terveztek, leegyszerűsíti a hidraulikus anyák csatlakoztatását és leválasztását a tesztelési műveletek során. Gyorskioldó mechanizmusának köszönhetően nincs szükség villáskulcsra, szivárgásmentes dinamikus nyomást biztosít, és mind az M12x1,5, mind az M14x1,5 menetekhez illeszkedik. Ergonomikus fogantyúja és tartós kialakítása nélkülözhetetlen társává teszi az ismétlődő feladatokhoz.

The test bench DIT31 is a modular solution to test the common rail injectors (the additional TC38 triggering unit is required) as well as the conventional and 2 stage (double spring) diesel injectors.
The applied technology allows the test parameters to be determined reliably on each injection, with greater precision and resolution than using on average long test cycles to collect a measurable quantity of fuel.

Main features:
- Main tank 3 lt. with 15 micron filter
- Separated container for the collection of the contaminated liquid
- Large atomization chamber with smoke extraction and halogen lamp
- Pneumatic operated pump unit, the standard version is suitable up to 1400 BAR (compressed air 8-10 BAR is required). Special versions can be installed as optional to generate more pressure and flow.
- Pneumatic vice for the automatic clamping of the injector
- Digital manometer with the reading scale selection (BAR/PSI)
- Printer to generate the test report
- Program for conventional injectors: (1) measurement of the NOP (nozzle opening pressure) and calculation of the back-leakage time.
- Program for Double-spring injectors: (2) measurement of the NOP1 (1st stage) and NOP2 (2nd stage), calculation of the back-leakage time and determination of the K factor.
- 2 programs for common rail injectors: (3) identification of the return flow (leakage time), (4) of the opening delay, the injection time and the injected fuel quantity (dp).
- 24 months warranty. User's and servicing manual in English language.

Tests and ohmic measurements should be obtained with a multimeter, to be used in conjuction with OTA.
The measuring point are fixed, so that the operator has the hands free.
The combination of the electric contacts is obtained by easily rotating the two knobs, like a game.
Function similar to Bosch 0 986 611 929.

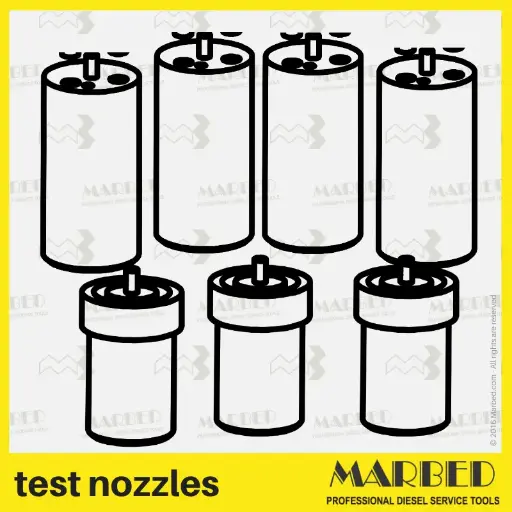

Referencia kalibráló fúvóka ISO tesztbefecskendezőkkel, a szivattyútesztek szabványosítására padokon és műhelyekben. Nem motorba való beépítésre. Összehasonlítható üzemanyag-szállítási adatokat biztosít az ISO tesztmódszerek szerint.

Tool box for disassembly and eassembly of PES…M BOSCH pumps and PES…RSF…Mercedes.
The set is supplied without the reamer 9333 because discontinued.
