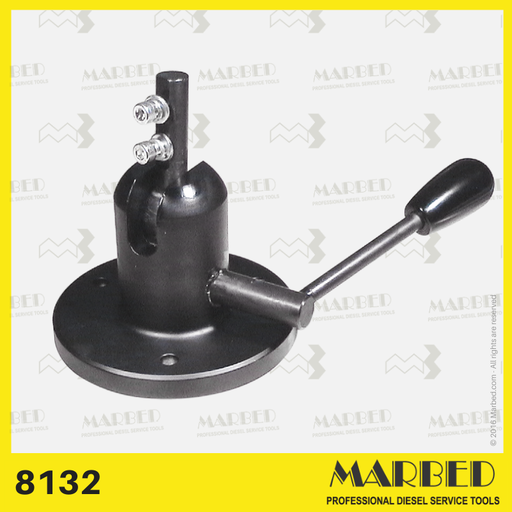

Aluminum base for swivel vice; it allows to hold:
- round bracket for common-rail pumps (8130 and 8131)
- flange bracket (the conjunction is 9356-A)
- DPS pumps operative flange (9669)

Bracket for assembly / disassembly of common rail pumps, on the workbench.

The circular support must be installed on revolving bases (ref. 8132 or 9260).
The system consists of a circular ring support, on which the (removable) bracket with adjustable projection is mounted, which allows to press the tappets. The circular holder holds an interchangeable round flange, which can rotate 360 degrees and can be locked in any position.
The internal flange allows to fix CP1, CP3, CP4, HP1, HP3, HP4, Delphi and VDO pumps.
Similar to 0 986 612 794

As an additional option, the following optional flanges are also available:
- 8131, for CP3.4 pumps
- 9402, for mechanical pumps A, M, VE, DPC

Clamp with two rods (spare part)

Comparator bearing to survey the rod share with connections for BOSCH P, P7100,8500,MW BOSCH pumps

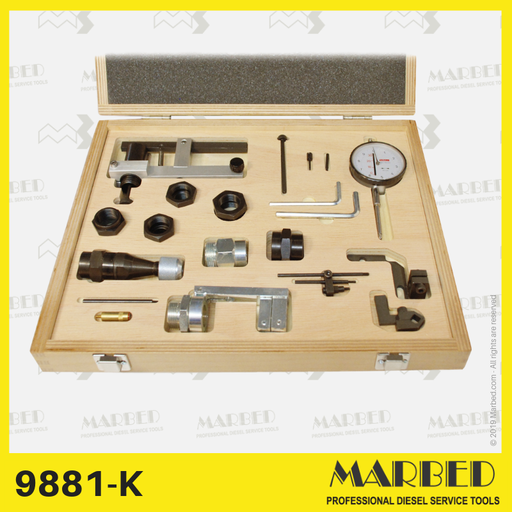

Box complete with universal comparator support to take dimension of rod stroke on pumps on line BOSCH P,P7100,8500,A,B,BV,BOSCH MW,M,RSF ando so on

Decimal comparator 30 mm stroke for rack travel measurement, without spring

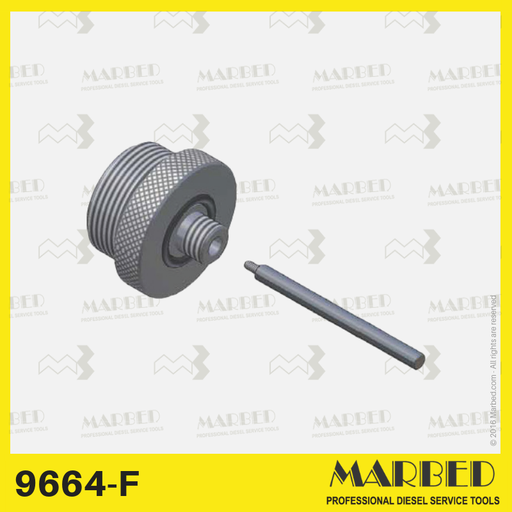

Interface (adapter with rod) for 9664-N on Delphi DPS pumps

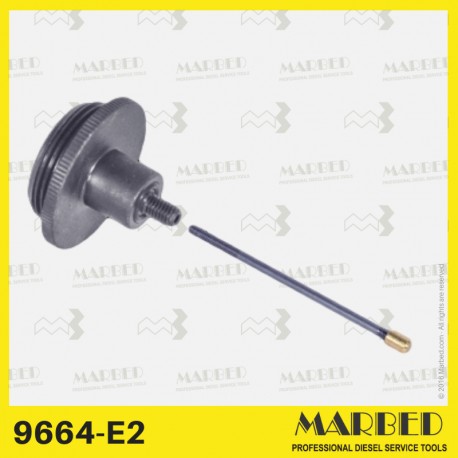

Interface (adapter with rod) for 9664-N on Bosch VE pumps

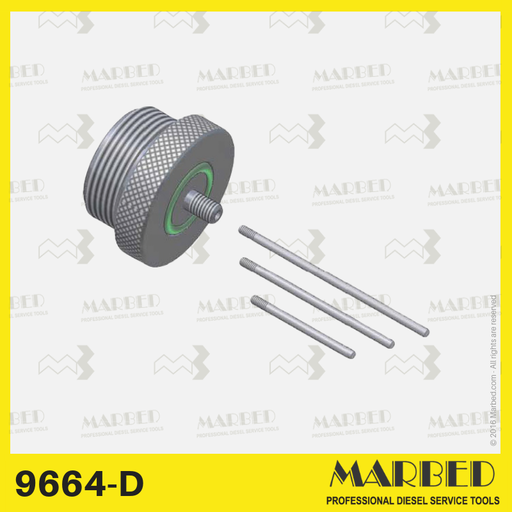

Interface (adapter with rod) for 9664-N on Delphi DPC and DPA pumps

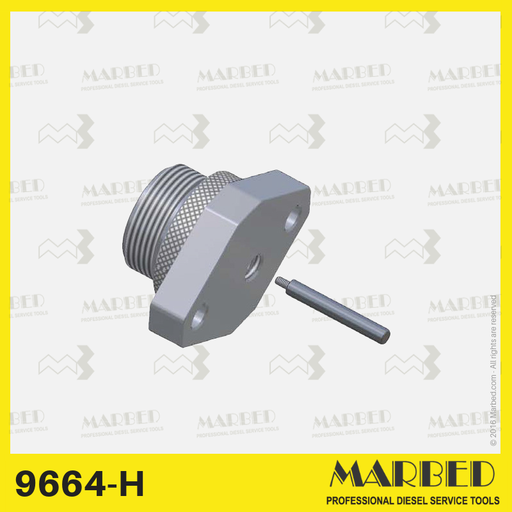

Interface (adapter with rod) for 9664-N on Delphi DP200 pumps

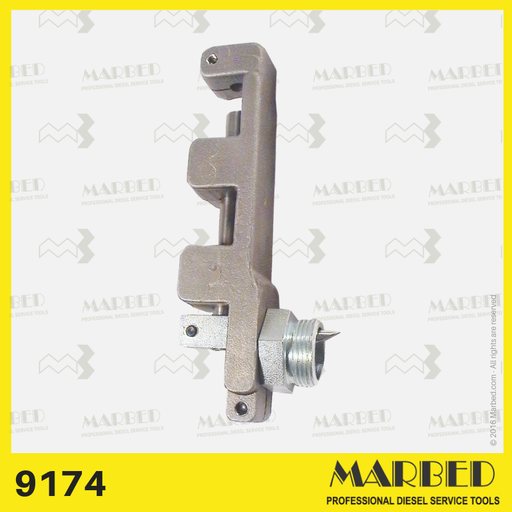

Mérőóra tartó Bosch PE/PS80 soros szivattyúkhoz. A szállítás kezdetét (Förderbeginn) határozza meg. Menet M24×1,5. OEM Bosch 1 688 130 085 / 112.

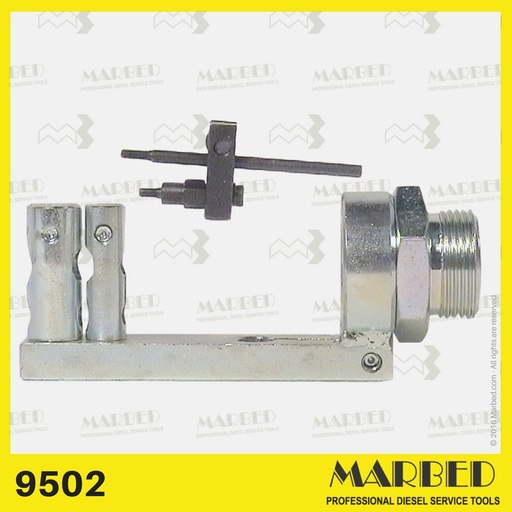

Közvetlen mérőóra tartó Bosch PE/P szivattyúkhoz 24×1,5 mm-es menettel (18 mm-es kinyúlás). Kompatibilis a 9502-C és 9483-K19 adapterekkel.

Univerzális konzol billenőkarral és visszahúzó rugóval, a komparátor tartására a fogasléc elmozdulásának mérése során soros szivattyúkon.
