Explore Premium Tools and Solutions for Diesel Pump and Injector Repairs

Pressure valve lifter with M12x1 thread.
Similar to Bosch reference 0 986 611 402 , KDEP 2977.

Pressure valve lifter with M14x1 thread.
Similar to Bosch reference 0 986 611 100, KDEP 2892.

Marbed 9040, hassasiyet ve güvenilirlik arayan profesyoneller için en üst düzey gravür aletidir. Tarih işaretlemek, garantileri onaylamak veya atölye kimliklerini kazımak için mükemmel olan bu elektrikli kalem, dizel enjeksiyon uzmanları ve ustaları için olmazsa olmazdır. Dayanıklılık için tasarlanan bu kalem, konfor için ergonomik tasarımı ve her türlü metal yüzeyde kusursuz sonuçlar için ayarlanabilir güç ayarlarıyla öne çıkar. Ayrıca, telli kalem veya sadece bakır gravür ucu dahil olmak üzere yedek parçaları kolayca bulunabildiğinden, her zaman iz bırakmaya hazır olacaksınız. Kompakt, verimli ve uzun ömürlü Marbed 9040, hassasiyette ortağınızdır.

Valve lowering tool for injection advance control

Wrench for the injection valve of VP pumps

Aluminum base for swivel vice; it allows to hold:
- round bracket for common-rail pumps (8130 and 8131)
- flange bracket (the conjunction is 9356-A)
- DPS pumps operative flange (9669)

Allen wrench, 10 mm hexagon drive to dismount the high-pressure sealing ring of common-rail injectors - 7,5 mm hole

Toolset for the manual grinding and lapping of the ball seat on Bosch CRI and CRIN valves.

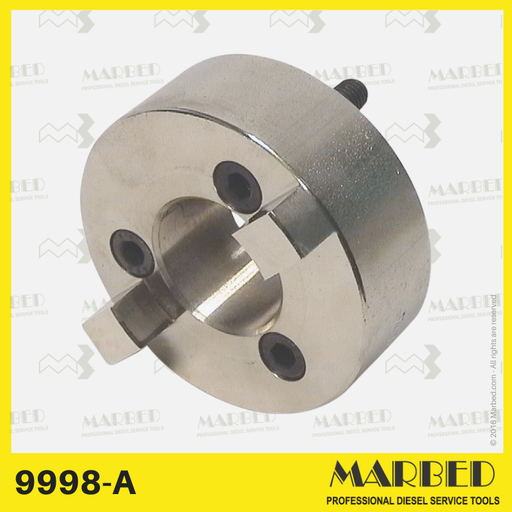

Coupling for motoring hub with 4 holes for Bosch VE pump on FORD TRANSIT ORION

Coupling for motoring hub with 3 holes for DPC-Bosch VE pumps on VW Polo 1900-Golf TD

Tool to recover the tightness of the ball valve of CRI and CRIN common rail injectors.
It is not a grinding operation to remove hardened metal from the conical seat: the principal is to keep the treatment of the conical surface and compact its molecoles by a strong shot on a geometrically accurate sphere made of hard metal.
A set of 10 pcs of these balls is provided with the machine.
Each ball can be used for 100 shots and have not to be confused with the balls normally used as spare part.

Hand pump for calibrating and checking the operations of
the diesel injectors
- precise adjustment of the injection pressure (adjust the
opening pressure of the injection nozzle)
- control of the spray atomization (pattern and vibration
characteristics)
- control tightness (leaks)
- equipped with bypass valve for the manometer.
Dial: 0 - 600 bars gliceroil
Tank fitted with a filter
Supplied with 2 connection pipes: 14-14 and 14-12 mm

Reamer with helical conical millers and diam 20mm shimming aluminium washers for nozzle holder copper cases.
Kit composed by:
1 x 9640 helical conical spare miller diam.22 IVECO
1 x 9640-A Conical spare miller diam.20,5 IVECO 115/17
1 x 9524 plane spare miller diam.22 IVECO 50NC-90NC
1 x 9524-A plane spare miller diam.21 VOLVO MAN

The rubber coating strengthens the tube which therefore vibrates less and produces less noise, extending its life. Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 450 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 073, Hartridge AHP120

Allen wrench, 10 mm hexagon drive to dismount the high-pressure sealing ring of common-rail injectors - 6,5 mm hole
