Standard tappet-press with head for nylon roller PE…B and P BOSCH pumps

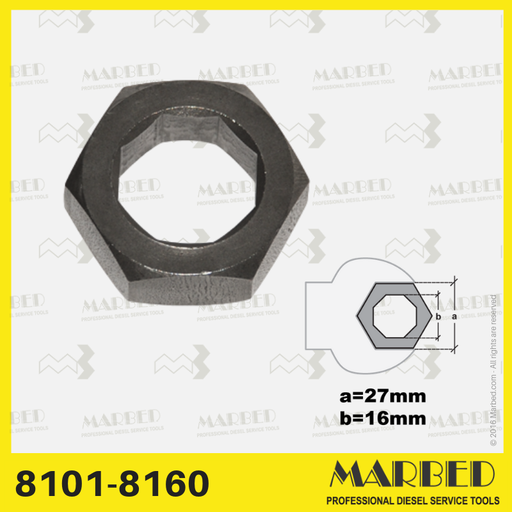

27 mm 12-side socket wrench 1/2" drive for the solenoid retaining nut.
Similaro to Bosch 0 986 613 185.

Similar to Bosch reference 0 986 611 275, KDEP 2921

Tappet clamp for removal and fitting the roller tappets
Similar to Bosch genuine ref. 0 986 611 298, KDEP 2941

Extractor autorroscante para sello de aceite en el eje de diámetro 17 (Ref. KDEP 1113)

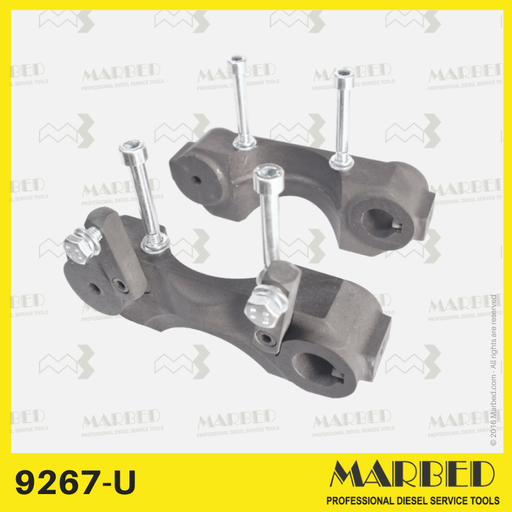

Pair of mounting bracket for the easy disassemble and reassemble of HP0 pumps. The bracket has to be installed on the swivel vice 9260.

Reinforced swivel base, for mounting / dismounting the injection pumps at the workbench.

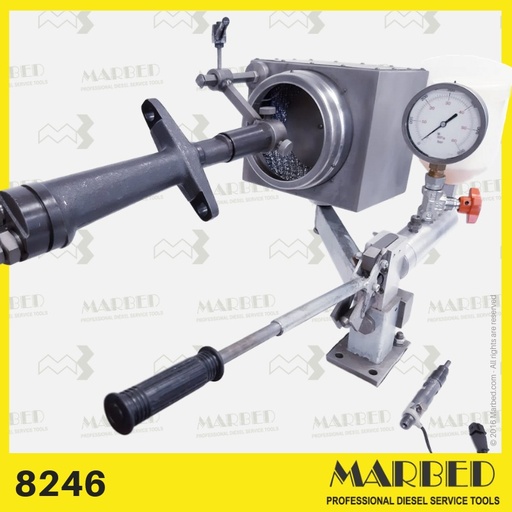

Bomba manual para calibrar y verificar el funcionamiento de los inyectores diesel.
- ajuste preciso de la presión de inyección (ajuste la presión de apertura de la boquilla de inyección)
- control de la atomización por pulverización (patrón y características de vibración)
- control de estanqueidad (fugas)
- Equipada con válvula de derivación por el manómetro.
Dial: 0 -> 400 bar.

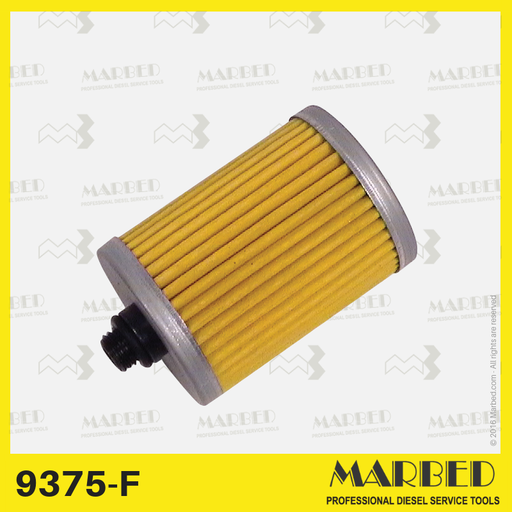

Tanque equipado con un filtro
Se suministra con 2 tubos de conexión: 14-14 y 14-12 mm.

Assortment of 850 calibrating shims for Bosch CRI and CRIN injectors, with 5 useful tools.
List of contents:
8210-T1, ball handling tool
8210-T2, antimagnetic pair of pliers
8210-T3, ring inserter
8210-T4, valve interter
8210-T5, ring extractor
8210-R04 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R05 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R06 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R07 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R13 from 1.14 to 1.25, every 0,01 mm (5 pcs each thickness)
8210-R28 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R29 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R34 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R35 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R41 from 1.19 to 1.10, every 1.30 mm (5 pcs each thickness)

Torx bit
Similar to 0 986 613 145

Centesimal comparator 30mm stroke for BOSCH rotary pumps timing (Rif. BH 1 687 233 012)
