injector testing

EUR (ecommerce)
Sıralama: Öne Çıkan

injector testing

Hand operated pump for testing diesel injectors
Hand pump for calibrating and checking the operations of the diesel injectors
- precise adjustment of the injection pressure (adjust the opening pressure of the injection nozzle)
- control of the spray atomization (pattern and vibration characteristics)
- control tightness (leaks)
- equipped with bypass valve for the manometer.
Dial: 0 -> 400 bars.
Tank fitted with a filter
Supplied with 2 connection pipes: 14-14 and 14-12 mm
Marbed® 9148-B Hızlı Çıkarma Hidrolik Konnektör
Dizel enjeksiyon uzmanları için tasarlanmış çok yönlü ve yenilikçi bir araç olan Marbed® 9148-B, test işlemleri sırasında hidrolik somunların bağlanmasını ve çıkarılmasını basitleştirir. Hızlı serbest bırakma mekanizmasına sahip olan bu araç, anahtar ihtiyacını ortadan kaldırır, sızıntısız dinamik basınçlandırma sağlar ve hem M12x1.5 hem de M14x1.5 dişlerine uygundur. Ergonomik sapı ve dayanıklı tasarımı, onu tekrarlayan görevler için vazgeçilmez bir arkadaş yapar.
New conception of marine injector tester
Hand operated pump to test the diesel fuel injectors, nozzle sizes: T, U, V, W and P, R, S, T as well.
The standard version is provided with manometer 0-600 BAR. Complying to the ISO 8984 standard. The tester can be completed with suction smoke device (optional).
Eligible to apply on the same range of 0 681 143 014 (EFEP 67 D) and more.
Hand operated pump for testing diesel injectors
Hand pump for calibrating and checking the operations of
the diesel injectors
- precise adjustment of the injection pressure (adjust the
opening pressure of the injection nozzle)
- control of the spray atomization (pattern and vibration
characteristics)
- control tightness (leaks)
- equipped with bypass valve for the manometer.
Dial: 0 - 600 bars gliceroil
Tank fitted with a filter
Supplied with 2 connection pipes: 14-14 and 14-12 mm
Injector tester adapter
New injector tester adapter Mercedes Actros diam.26 (patented pipe)
Injector tester adapter
New injector tester adapter diam.26 for Iveco Tector (petented pipe)
Injector tester adapter
New design injector holder 9227-E for testing GM diam.27,5 injectors on Renault Mack 480 truck.
Adapter for injector tester
Tool for testing Man diam.29 injectors
Fume extraction device similar to Bosch 0 684 200 702
Fume extractor unit to be used in conjunction with any hand operated injector tester.
Steel structure with maze of decantation, two-stage filtration and top inspection door.
LED lights to enchance the view are integrated in the spray chamber.
12 V DC fun upto 27 m3 suction
Hand operated injector tester ISO 8984, 0÷600 BAR armored manometer (large case)
Hand pump for calibrating and checking the operations of
the diesel injectors
- precise adjustment of the injection pressure (adjust the
opening pressure of the injection nozzle)
- control of the spray atomization (pattern and vibration
characteristics)
- control tightness (leaks)
- equipped with bypass valve for the manometer.
Dial: 0 - 600 bars gliceroil
Tank fitted with a filter
Supplied with 2 connection pipes: 14-14 and 14-12 mm
Dizel enjektörler için hidrolik arayüz
Opel Diesel 2000 için nozul tutucu aleti

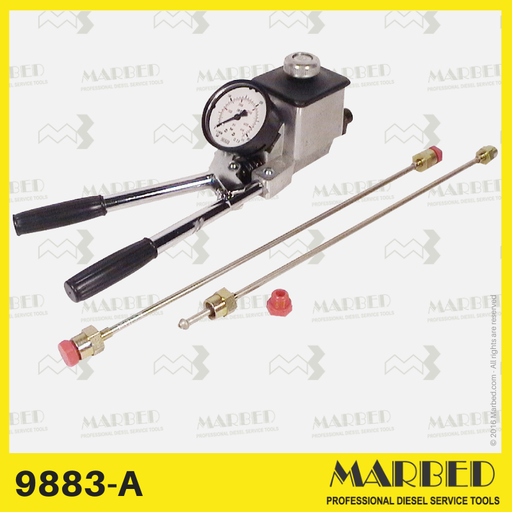

Marbed 9883-A Taşınabilir Dizel Enjektör ve Pompa Zamanlama Test Cihazı
Dizel uzmanları için profesyonel taşınabilir test cihazı. Mekanik enjektörleri hızlı bir şekilde test edin ve enjeksiyon pompası zamanlamasını yerinde kontrol edin (0–315 bar / 0–4570 psi). Çelik borular ve yardımcı tankla birlikte komple set.
Adapter
Injector test pump reduction for Caterpillar nozzle holder
9148/D Attacco rapido 18x1,5 - 22x1,5
Quick connection for injectors with thread 18x1,5 - 22x1,5
Quick connection
Quick connection for injectors with thread 16x1,5-20x1,5
