Essential Diagnostic Tools

Bomba manual para calibrar e verificar as operações dos injetores de diesel
- ajuste preciso da pressão de injeção (ajuste a pressão de abertura do bico de injeção)
- controle da atomização por spray (características de padrão e vibração)
- aperto de controle (vazamentos)
- equipado com válvula de desvio para o manômetro.
Disque: 0 -> 400 barras.
Tanque equipado com filtro
Fornecido com 2 tubos de conexão: 14-14 e 14-12 mm

Electronic control unit to be used in conjuction with a pop tester to generate the electric pulse and check the electromagnetic actuator of common rail injectors (Bosch, Delphi, Denso)

Holder for test bench, allowing to install 6+6 test injectors with 6 reinforced quick connections pipes for hight pressure application and male/female fittings - 20x1,5mm.

Microscope 100X with top and bottom lights

Assortment of 850 calibrating shims for Bosch CRI and CRIN injectors.
List of contents:
8210-R04 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R05 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R06 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R07 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R13 from 1.14 to 1.25, every 0,01 mm (5 pcs each thickness)
8210-R28 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R29 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R34 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R35 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R41 from 1.19 to 1.10, every 0.01 mm (5 pcs each thickness)

Micron measuring station with digital reading. 0-25 mm range.

Holder for millesimal gauge with 70 mm diameter round top. Made in hardened, ground and lapped steel.

Tool box for MW BOSCH (type Mercedes) consisting of 18 pieces

Complete tool box for EP-VE BOSCH pumps composed of 15 tools (20 pieces)

Millesimal digital comparator 15 mm stroke

Experience the reliability of the Marbed 9578-B, a robust steel coupling half designed to drive diesel pumps on test benches. Compatible with PE..A, PE..B, P7, PE..MW..S1000, and Bosch reference part 1 686 430 024, it features a 27 mm hex nut for quick removal and versatile application.

MM - Multímetro Palmar para testes EDC

Assortment of 850 calibrating shims for Bosch CRI and CRIN injectors, with 5 useful tools.
List of contents:
8210-T1, ball handling tool
8210-T2, antimagnetic pair of pliers
8210-T3, ring inserter
8210-T4, valve interter
8210-T5, ring extractor
8210-R04 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R05 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R06 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R07 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R13 from 1.14 to 1.25, every 0,01 mm (5 pcs each thickness)
8210-R28 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R29 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R34 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R35 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R41 from 1.19 to 1.10, every 1.30 mm (5 pcs each thickness)

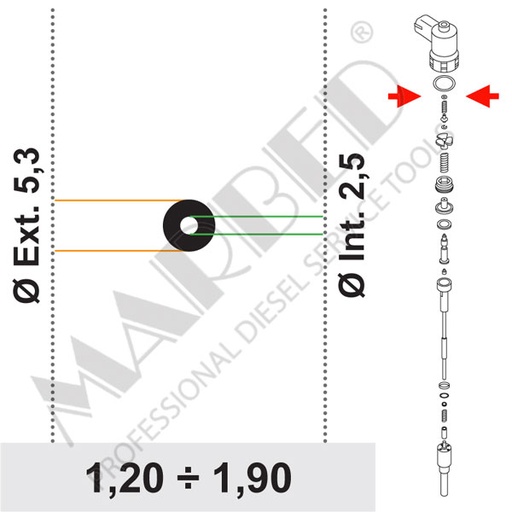

Diâmetro externo 5,3 mm, diâmetro interno 2,5 mm

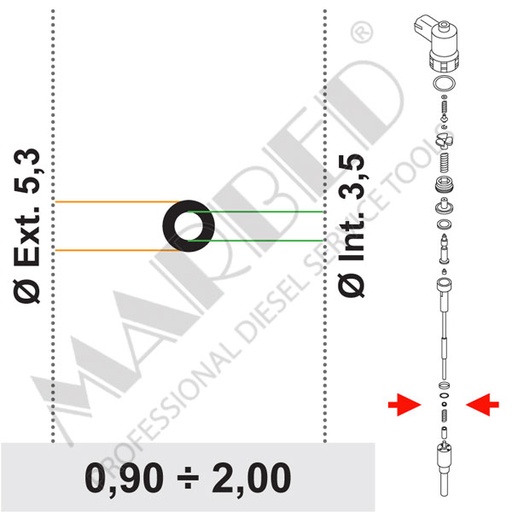

Diâmetro externo 5,3 mm, diâmetro interno 3,5 mm
