Voorgemonteerde configuratie van het Marbed Modular Testing System voor dieselinjectiepompen zonder interne nokkenas. Elke kit bevat de 9562-M1 gietijzeren Cambox, precisie-afstandshouders, montageplaten en nokkenassen geselecteerd voor specifieke pompfamilies. Alle componenten worden geleverd in op maat gemaakte houten kisten, wat zorgt voor een perfecte organisatie, bescherming en snelle installatie op de werkbank.

The ERT45R Control Unit is the core of a universal testing system designed for electronically controlled diesel injection pumps, compatible with any test bench. This innovative simulator has been developed through extensive research, resulting in a versatile device that is programmable via smartcards (microchip cards). This feature aligns perfectly with modern operational requirements.
The ERT45R is a long-term investment, allowing for easy expansion through a selection of available programming kits—21 options are currently available. Each kit includes a programming card (software), a detailed instruction manual with step-by-step illustrations, base cables (2 meters in length), and adapter cables tailored for specific pump connectors. With a straightforward setup, at least one programming kit is necessary for functionality, making the ERT45R an essential tool for professionals seeking to enhance their testing capabilities while ensuring flexibility and efficiency in their work environment.

The Marbed 9680-A, made of durable cast iron with precision machining, delivers exceptional stability and accuracy for centered diesel pump mounting and testing.

The ERT45R Programming Kit enhances the functionality of the ERT45R control unit, specifically for testing Caterpillar C6.6 and C4.4 common rail pumps.
By leveraging the available features, Diesel Fuel Injection Specialists are equipped to conduct a comprehensive range of tests with confidence, achieving both precision and reliability in evaluating the performance of this type of pumps.
The specialized software together with the cables are crucial for professionals aiming to deliver high-quality service in fuel injection system diagnostics, thereby improving overall operational efficiency.

As a key component of the ERT45R testing method, the FL400/A flow meter features dual measurement capabilities, to alternatively monitor the flow rate to the hi-pressure rail and return flow. (automotive and industrial applications).

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

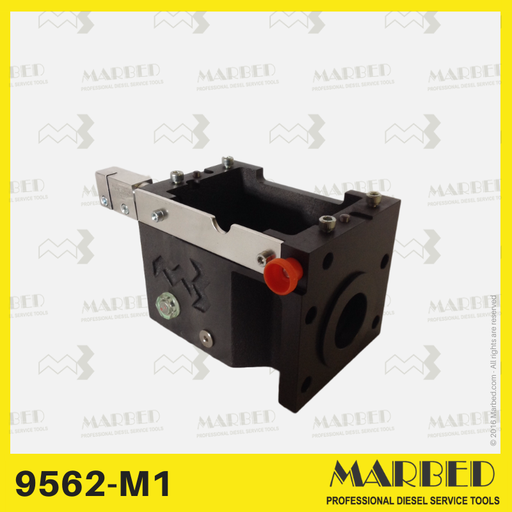

Basismodule van het Marbed Modular Testing System voor dieselinjectiepompen zonder interne nokkenas. Ontwikkeld om decennialange werkplaatsbeperkingen op te lossen: de 9562-M1 biedt één modulaire basis die aanpasbaar is aan meer dan 20 pomptypen, waardoor er geen behoefte meer is aan meerdere speciale nokkenassen. De 9562-M1 vormt de kern van het universele nokkenasplatform. De gietijzeren constructie garandeert stijfheid, maatvastheid en nauwkeurigheid op lange termijn. Het systeem moet worden geconfigureerd met afstandshouders, platen, nokkenassen en accessoires, afhankelijk van de specifieke pompfamilie.
