Tools for diesel pumps (2.)

EUR (ecommerce)
排序： 精选

Tools for diesel pumps (2.)

Modular cambox, Zexel PFR..K , Zexel PFR.. KD, Zexel PFR..MD configuration.
Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)
The flange 9478-CP4 warrants the centered clamping of the CP4 pumps (Audi and Bmw applications), on any test bench. The flange requires 9680-A universal cradle or similar.
共轨泵定心安装法兰

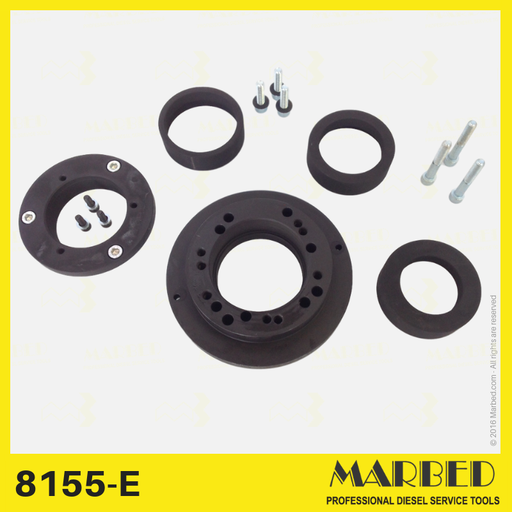

Marbed 8155-E 法兰可确保大多数共轨泵（博世 CP1、CP3、CP4、德尔福、电装、威迪欧）在任何测试台架上实现中心夹紧。配备四个减速环（Ø 50、60、68、80 毫米），并与 CP1K 泵兼容。需要 Marbed 9680-A 通用支架或类似支架才能正确安装。
共轨泵台钳
Swivel vice for Common-rail pumps
Extractor for the bush of the pressure regulating valve
Corresponding to Bosch reference 0 986 611 562 - KDEP 1027, Zexel 157829-4620
Marbed 9029 花键至锥形联轴器适配器（DPA 齿轮驱动联轴器）
使用 Marbed 9029 花键锥形联轴器适配器（也称为 DPA 齿轮驱动联轴器）优化您的 DPA 泵测试台设置。这款多功能适配器专为无缝集成而设计，可将原有的花键连接转换为标准的 17 毫米外锥形连接，从而兼容锥形半联轴器。其精密的工程设计确保了完美对准，而其耐用性则确保了在严苛的测试台操作条件下也能提供可靠的性能。简化您的工作流程，轻松应对各种测试场景。
Special tools (in wooden case) for the Bosch P size in-line pumps
CAV-DPC Tool box
Tool box for assembly, disassembly and timing of CAV DPC pumps (17 particulars).
Comparator holder M8x1 with pair of probes.
Similar to 0 986 611 754, KDEP 1085, 1 680 110 630.

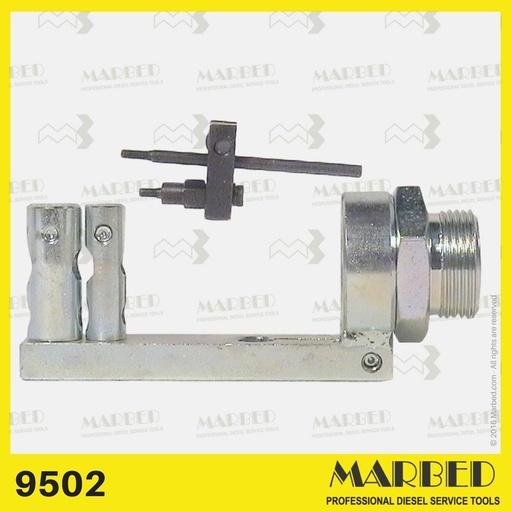

Marbed 9502 – 适用于博世 PE/P 泵的齿条行程千分表支架（OEM 参考号：博世 1 688 130 030、EFEP 393）
适用于博世 PE/P 泵的直式千分表支架，带 24×1.5 毫米螺纹（18 毫米突出）。兼容 9502-C 和 9483-K19 适配器
Cradle for Bosch test bench, center distance 125 - guide 20. Similar to 1 688 010 124
The Marbed 9680-A, made of durable cast iron with precision machining, delivers exceptional stability and accuracy for centered diesel pump mounting and testing.
Adapter cable for testing and adjusting the M size Bosch in-line pumps equipped with RE22 regulator, applied on Mercedes-Benz. Similar to 0 986 610 115.
Adapter cable for testing and adjusting the P size Bosch in-line pumps equipped with RE30 regulator, applied on John Deere. Similar to 0 986 610 113.
Adapter cable for testing and adjusting the P and H size Bosch in-line pumps equipped with RE30 and RE33 regulator, applied on Scania. Similar to 0 986 610 114.
Adapter cable for testing and adjusting the Bosch in-line pumps equipped with RE30 regulator, applied on Man. Similar to 0 986 610 107.
Tools box
Tool box for disassembly and eassembly of PES…M BOSCH pumps and PES…RSF…Mercedes.
The set is supplied without the reamer 9333 because discontinued.
Calibrated plate for mounting the Zexel PFR..4K pumps, on 9562-M1 cambox.
Calibrated plate for mounting the Zexel PFR..4K pumps, on 9562-M1 cambox. Double side application.
Support
Support for Bosch pumps PFM1A90S... (0 414 396 ...)
Solution to mount and drive Caterpillar 3412 pumps on hartridge AVM-PC test benches.
8133-C
