Toolset for the manual grinding and lapping of the ball seat on Bosch CRI and CRIN valves.

DIT31 4.0 不仅仅是一次简单的升级；它代表着从依赖操作员的测试方式到数字化验证环境的根本性转变。这款通用测试台专为现代柴油机专家精心打造，为共轨（电磁式和压电式）以及机械喷油器（传统型、阶梯式和两级/双弹簧式）的测试提供了先进的解决方案。

The ERT45R Programming Kit enhances the functionality of the ERT45R control unit, specifically for testing Caterpillar C6.6 and C4.4 common rail pumps.
By leveraging the available features, Diesel Fuel Injection Specialists are equipped to conduct a comprehensive range of tests with confidence, achieving both precision and reliability in evaluating the performance of this type of pumps.
The specialized software together with the cables are crucial for professionals aiming to deliver high-quality service in fuel injection system diagnostics, thereby improving overall operational efficiency.

ERT45R 控制單元是專為電控柴油噴射幫浦設計的通用測試系統的核心，可與任何測試台相容。這種創新的模擬器是透過廣泛的研究開發出來的，是一種可透過智慧卡（微晶片卡）進行編程的多功能設備。此功能完全符合現代操作要求。
ERT45R 是一項長期投資，可以透過選擇可用的程式套件輕鬆擴展——目前有 21 個選項可用。每個套件包括一張編程卡（軟體）、一份帶有逐步插圖的詳細說明手冊、基礎電纜（長 2 公尺）以及專為特定泵連接器定制的適配器電纜。透過簡單的設置，至少需要一個程式套件來實現功能，這使得 ERT45R 成為尋求增強測試能力同時確保工作環境的靈活性和效率的專業人士的必備工具。

Warrants the centered clamping of the pumps having 50 mm hub diameter, on any test bench. The flange requires 9680-A universal cradle or similar.

Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 600 mm
- nuts: M14x1,5 mm - M12x1,5 mm
Similar to Bosch reference 1 680 750 014, Hartridge AHP117, Denso 95091-10260

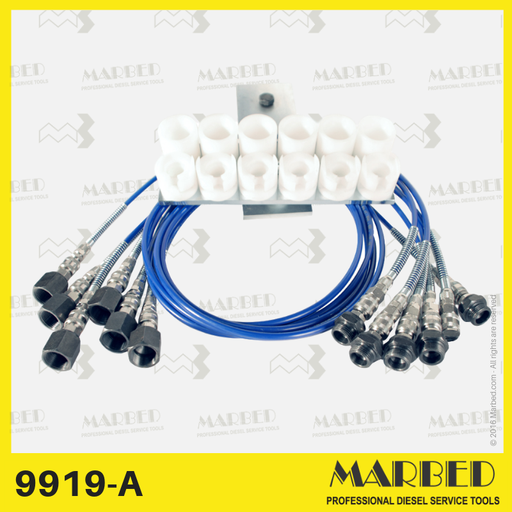

Holder for test bench, allowing to install 6+6 test injectors with 6 reinforced quick connections pipes for hight pressure application and male/female fittings - 20x1,5mm.

Knurled wrench for CAV pressure unions on Layland-Caterpillar engines with 1/2" square

专为博世直列泵压力阀座设计的专业级 1/2 英寸花键套筒。可直接替代博世 0 986 611 451 和博世 KDEP 2986。

Precision-crafted flange with a 50 mm hub diameter for diesel pump alignment. Compatible with EP / VM, EP / VA, PL 04.. (Mini), NP-VE Zexel, VE..F.., VE..E.., Bosch 1 685 720 062, and the Marbed 9680-A, 9601, and pivotable swivel base Marbed 9260 systems.

适用于博世 PE/P 泵的直式千分表支架，带 24×1.5 毫米螺纹（18 毫米突出）。兼容 9502-C 和 9483-K19 适配器

相当于梅赛德斯-奔驰 617 589 01 09 00 | 博世 KDEP 1044 | 博世 0 986 611 623 / 0986611623

Marbed® 9148-B 是一款专为柴油喷射专家设计的多功能创新工具，可简化测试操作中液压螺母的连接和断开。它采用快速释放机制，无需使用扳手，确保无泄漏动态加压，并兼容 M12x1.5 和 M14x1.5 螺纹。其符合人体工程学的手柄和耐用的设计使其成为重复性任务的必备工具。

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Tests and ohmic measurements should be obtained with a multimeter, to be used in conjuction with OTA.
The measuring point are fixed, so that the operator has the hands free.
The combination of the electric contacts is obtained by easily rotating the two knobs, like a game.
Function similar to Bosch 0 986 611 929.
