Tool box for MW BOSCH (type Mercedes) consisting of 18 pieces

Toolset for the manual grinding and lapping of the ball seat on Bosch CRI and CRIN valves.

Assortment of 850 calibrating shims for Bosch CRI and CRIN injectors, with 5 useful tools.
List of contents:
8210-T1, ball handling tool
8210-T2, antimagnetic pair of pliers
8210-T3, ring inserter
8210-T4, valve interter
8210-T5, ring extractor
8210-R04 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R05 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R06 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R07 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R13 from 1.14 to 1.25, every 0,01 mm (5 pcs each thickness)
8210-R28 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R29 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R34 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R35 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R41 from 1.19 to 1.10, every 1.30 mm (5 pcs each thickness)

Tool box for assembly and disassembly of CAV rotary pumps.
(17 items - 24 particulars)

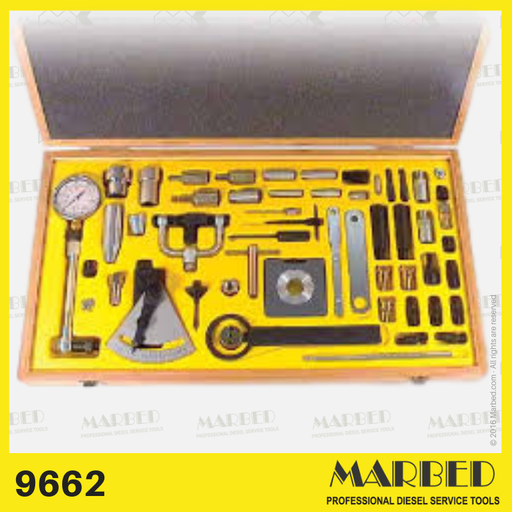

Tool box for assembly, disassembly and timing of CAV DPC pumps (17 particulars).

Complete tool box with comparator bearings for the survey of delivery start ratio on Bosch rotating pumps A, B, C and VE type on diesel engines.

Box complete with universal comparator support to take dimension of rod stroke on pumps on line BOSCH P,P7100,8500,A,B,BV,BOSCH MW,M,RSF ando so on

Universal comparator supports box for delivery start on test bench and check for BOSCH P injection pumps setting on the engine

Important — Product configuration:
- The image shows the original wooden case version.
- The tools are supplied as a complete service set, ready for workshop use.
- The wooden case is currently not available.
- Measurement tools 9572 and 9572-A are not included.

Important — Product configuration
- The image shows the original wooden case version.
- The tools are supplied as a complete service set, ready for workshop use.
- The wooden case is currently not available.
- Item 9573 has been upgraded to the 9664-C modular advance piston travel gauge.
- Some non-critical tools (including 9567) are not included.

Nozzle cleaning tool kit (17 articles - 19 pcs.)

Complete tools box for MW Bosch pumps consisting of 26 pieces.

Manometric assembly for the LDA testing bench. Manometer 0-2,5 armoned, shock resistant with steel inox mechanics

ระบบทดสอบแบบโมดูลาร์ Marbed ที่ประกอบสำเร็จแล้วสำหรับปั๊มฉีดดีเซลที่ไม่มีเพลาลูกเบี้ยวภายใน แต่ละชุดประกอบด้วย Cambox เหล็กหล่อ 9562-M1, สเปเซอร์ความแม่นยำสูง, แผ่นยึด และเพลาลูกเบี้ยวที่คัดสรรมาสำหรับปั๊มแต่ละรุ่น ส่วนประกอบทั้งหมดบรรจุในกล่องไม้สั่งทำพิเศษ เพื่อให้มั่นใจได้ถึงความเป็นระเบียบเรียบร้อย การป้องกัน และการติดตั้งที่รวดเร็วบนโต๊ะทำงาน

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Precision tools for the proper cleaning of all S and T type nozzles are housed in a prestigious wooden box. The kit contains a full range of scrapers, hole pickers, cleaning brush, etc., and other essential items (KDEP 2900, Diesel Kiki 1972) .

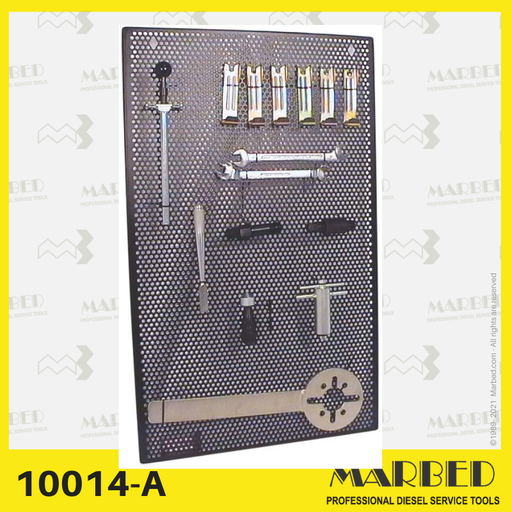

Size A in-line fuel injection pump service tools panel

Special tool for the disassembly and the aligned mounting of the nozzle and for preserving the pins from breaking during the rotation of the nozzle nut.
The tool is equipped with analogic gauge for the reference of the force applied on the injector body.
Similar to 0 986 610 130

Tool box for the assembling and dismounting of BH P 7100 and P 7800, mounted on IVECO TURBOSTAR - MERCEDES... MACK-JOHN DEERE
