Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)

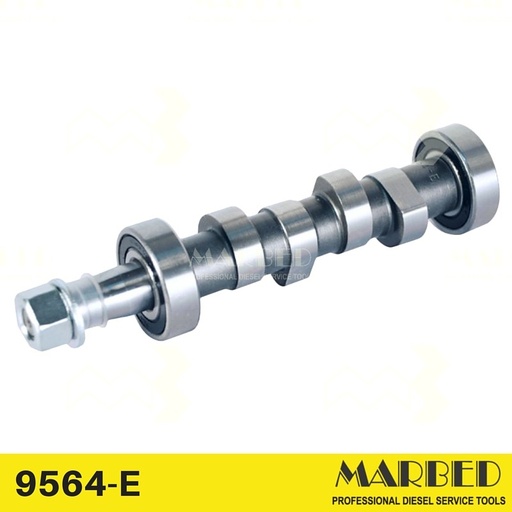

- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)

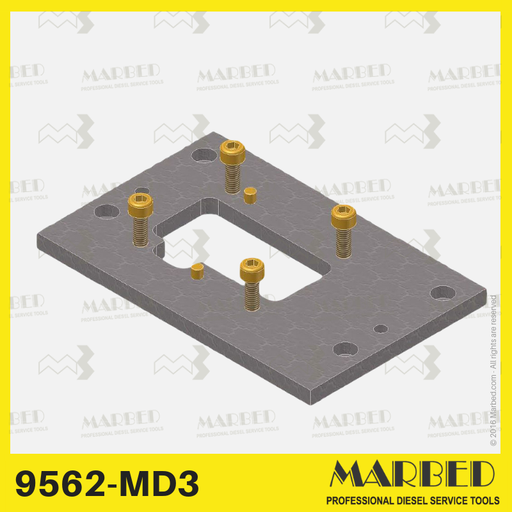

- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)

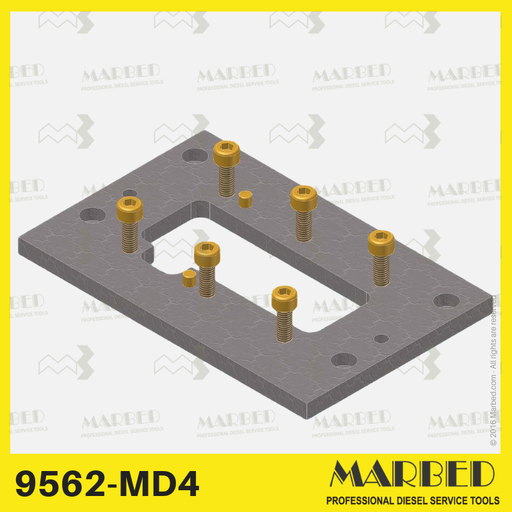

- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Corresponding to Bosch reference 0 986 611 562 - KDEP 1027, Zexel 157829-4620

Calibrated plate for mounting the Zexel PFR..4K pumps, on 9562-M1 cambox. Double side application.

- The Marbed 9423-U is a pair of brackets designed for secure and centered mounting of diesel injection pumps on Bosch-standard test benches.
- Compatible with Bosch part numbers 1 688 030 153 (56 mm radius) and 1 688 030 147 (45 mm radius).
- Supports various pump models, including PE..A, P7..(A), NP-PE..A.. Zexel, CMS... Sigma, CMX... Sigma, PE..P..800..., and more.

Модульная система для испытаний насосов без распределительных валов размера PFR1K .., PFR2K .., PFR3K .. и PFR4K .. производства Zexel.
Распредвал может быть установлен на любом испытательном стенде для дизельных топливных насосов.
Эта конфигурация поставляется в одной деревянной коробке.

Wrench to fix/remove the flange, shaft and pulley on the following pumps ZEXEL VP. The timing pin is included.

Flange for fixing ZEXEL VP pumps on test benches. It requires the universal bracket 9680-A)

ключ для пятиугольных болтов на насосах Zexel PFR-KX.
Аналог Zexel 157914-3100, Bosch 9 681 610 122.

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 11 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in two wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyl. camshaft 7 mm (9564-A) and 6 mm (9564-B)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

Это применимо на любом испытательном стенде для дизельных топливных насосов.
Комбинируя Cambox с дополнительными пластинами и проставками, получается полная система для тестирования до 19 типов погружных насосов производства Bosch, Denso и Zexel.

Similar to Bosch 0 986 611 475 - KDEP 2998, Zexel 157915-200.

Модульная камера Zexel PFR..K в конфигурации.
Модульная система для испытаний насосов без распределительных валов размера PFR1K .., PFR2K .., PFR3K .. и PFR4K .. производства Bosch.
Распредвал может быть установлен на любом испытательном стенде для дизельных топливных насосов.
Эта конфигурация поставляется в одной деревянной коробке.

Precision-crafted flange with a 50 mm hub diameter for diesel pump alignment. Compatible with EP / VM, EP / VA, PL 04.. (Mini), NP-VE Zexel, VE..F.., VE..E.., Bosch 1 685 720 062, and the Marbed 9680-A, 9601, and pivotable swivel base Marbed 9260 systems.
