De Marbed 8155-E flens garandeert de gecentreerde klemming van de meeste common-railpompen (Bosch CP1, CP3, CP4, Delphi, Denso, VDO) op elke testbank. Uitgerust met vier reductieringen (Ø 50, 60, 68, 80 mm) en compatibel met CP1K-pompen. Vereist de Marbed 9680-A universele houder of vergelijkbare houder voor een correcte montage.

Swivel vice for Common-rail pumps

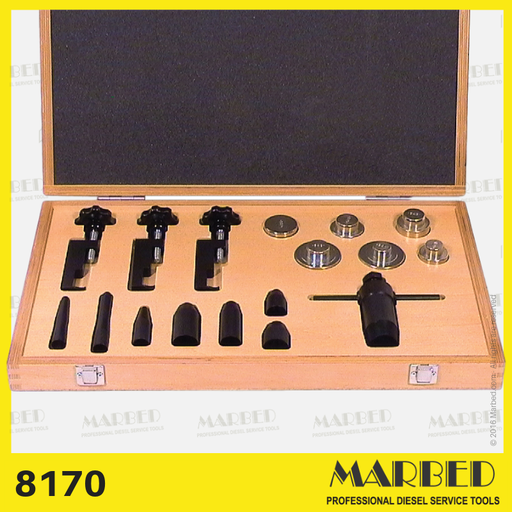

Toolset for CP3 pumps. The following tools are included:
8133 - Clamping tool set for the pumping elements
8171 - Set of 6 sealing ring inserters
8172 - Puller for the shaft sealing ring (25mm)
8173 - Set of 7 O-ring inserters

Inserter bracket and oil seal for CP1 and CP3 pumps

8225-CP3 helps to determine if the ZME valve can be retained, instead of installing a new one, on CP3 and CP1-H pumps.
Similar to 0 986 613 270

Flexible High pressure line L=600 mm. - M12x1,5 - M12x1,5

Extraction tool for the cap on the rod-type filter on common rail high-pressure pump CP1H with gear pump.
Similar to 0 986 613 165

Extractor tool for the filter cap on CP1H common rail high pressure pumps equipped with gear pump.
Similar to Bosch 0 986 613 162.

This device allows to monitor the pump body pressure (5 BAR).
It is also equipped with ball valve, to measure the negative pressure generated by the pump.
Caution: Not all test benches are able to supply the amount of flow required by the comon rail pumps. Therefore, it is crucial to monitor that, during the test, the pump does not go into cavitation.

Warrants the centered clamping of the pumps having 50 mm hub diameter, on any test bench. The flange requires 9680-A universal cradle or similar.

Bracket for assembly / disassembly of common rail pumps, on the workbench.

The circular support must be installed on revolving bases (ref. 8132 or 9260).
The system consists of a circular ring support, on which the (removable) bracket with adjustable projection is mounted, which allows to press the tappets. The circular holder holds an interchangeable round flange, which can rotate 360 degrees and can be locked in any position.
The internal flange allows to fix CP1, CP3, CP4, HP1, HP3, HP4, Delphi and VDO pumps.
Similar to 0 986 612 794

As an additional option, the following optional flanges are also available:
- 8131, for CP3.4 pumps
- 9402, for mechanical pumps A, M, VE, DPC

8 mm Oldham drive coupling for CP1 pumps (Mercedes) on any test bench.
Similar to BH 1 685 702 086

Self-threading puller for oil seal on diam.20 shaft ( 0 986 611 821 - Kdep 1114)
