Explore Premium Tools and Solutions for Diesel Pump and Injector Repairs

Tappet fixing pin for the seal test of the pumping elements

The assortment includes 1500 calibrated shims for 5 most popular types of injector holders, in 3 thicknesses (0.05 mm, 0.1 mm and 0.2 mm)
- external diameter 11.5 mm, internal diameter 5.1 mm
- external diameter 10 mm, internal diameter 3 mm
- external diameter 9 mm, internal diameter 4.2 mm
- external diameter 11 mm, internal diameter 7 mm
- external diameter 7.5 mm, internal diameter 3.6 mm

Tool box for assembly, disassembly and timing of CAV-DPS pumps (Ford T.ID. - F.York - Golf W.) - 51 items.

It creates 25 (3x8 cyl. + 1) compartments of various sizes to house the components of the pumps in line during assembly and disassembly operations.
Thanks to the perforated bottom, the fuel residues inside the pump are collected in the lower tray which can be easily released.

Overall dimensions: approx. 40x50x20 cm

Marbed® 9239シーリングプライヤーは、精度と耐久性を重視して設計されており、鉛入りセキュリティシールの適用に最適なツールです。堅牢な構造と人間工学に基づいたデザインにより、ワイヤーロープやその他の改ざん防止材の作業でも、安全かつ効率的なシーリング作業を実現します。信頼性を求めるプロフェッショナルにとって、信頼できる選択肢です。

Biodegradable fluid in package of 5 litres for diesel and eletronic components

Complete tool box with comparator bearings for the survey of delivery start ratio on Bosch rotating pumps A, B, C and VE type on diesel engines.

Nozzle cleaning tool kit (17 articles - 19 pcs.)

The kit includes 480 calibrated shims (internal diameter 5.2 mm - external diameter 11.5 mm) in 24 thicknesses (from 0.80 to 1.95 mm - each 0.5 mm)

Box with balanced washers for Cav nozzle holders .

Swivel vice for B-BV pumps ( BH 0 986 611 248 - KDEP 2919 )

Fixture set in elegant tool box very usefull for the Bosch EP/VE rotary pumps and P type repair with the addition of LDA supercharged.

Complete tool box for EP-VE BOSCH pumps composed of 15 tools (20 pieces)

ISO mounting for test bench consisting of bed and 12 nylon bushings with 6 flexible hoses equipped with quick connections on male/female fittings - 20x1,5mm

Universal jig to shape diam 6 mm high-pressure pipes

Extractor for bushings on Bosch CP4 pumps

Bracket for assembly / disassembly of common rail pumps, on the workbench.

The circular support must be installed on revolving bases (ref. 8132 or 9260).
The system consists of a circular ring support, on which the (removable) bracket with adjustable projection is mounted, which allows to press the tappets. The circular holder holds an interchangeable round flange, which can rotate 360 degrees and can be locked in any position.
The internal flange allows to fix CP1, CP3, CP4, HP1, HP3, HP4, Delphi and VDO pumps.
Similar to 0 986 612 794

As an additional option, the following optional flanges are also available:
- 8131, for CP3.4 pumps
- 9402, for mechanical pumps A, M, VE, DPC

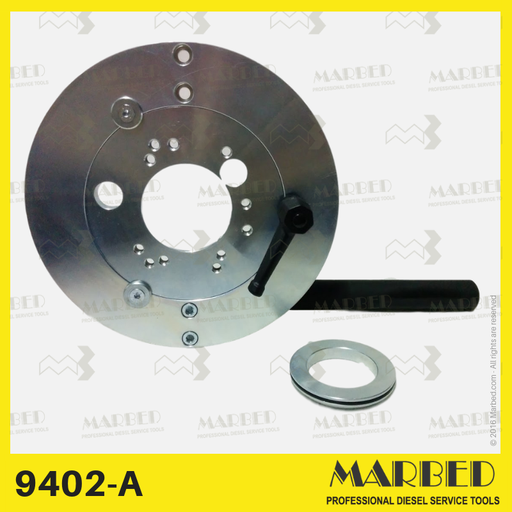

Marbed 9402-Aは、フランジ付きディーゼルポンプの組立・分解に最適なプロ仕様のツールです。9260スイベルベースまたは標準ベンチバイス（9600ブロックを使用）に取り付けるよう設計されたこのシステムは、比類のない精度と柔軟性を提供します。改良された円形クランプは、ポンプ取り付け用の交換可能なプレートを保持し、シャフト軸に沿って360°回転し、どの位置でも確実に固定できます。PES..A、VA/VE、CAV、PES..Mポンプに対応する9402-Aは、オプションでコモンレールポンプ（8130-V）およびCP3.4ポンプ（8131）用のフランジもサポートしています。この改良された設計は、従来の9402モデルの後継機であり、ディーゼル燃料噴射スペシャリストにとって機能性と信頼性が向上しています。
