Reinforced quick release connection nozzle holder side

Technical specifications:
- capacity: 0-30 cc.
- external diameter: 17 mm
- length: 240 mm

Specifications:
- external diameter: 6 mm
- internal diameter: 1,75 mm
- thickness: 2,125 mm
- length: 450 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Hartridge AHP133

Similar to Bosch genuine reference 0 986 611 240 (KDEP 2916)

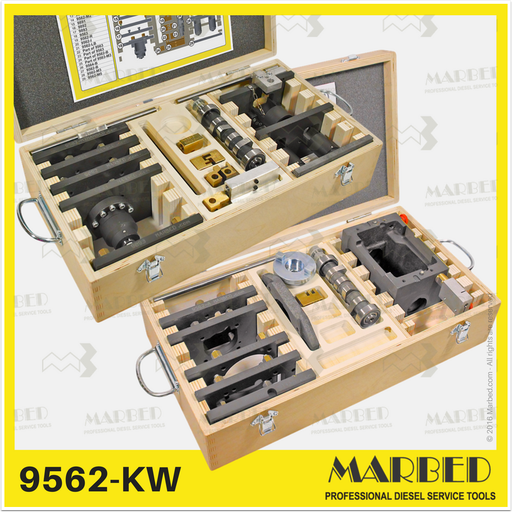

Marbed 9562-KW Cambox 構成で精度と多用途性を実現 ディーゼル噴射スペシャリスト向けに設計されたこのシステムは、既存のテストベンチの機能を拡張し、次の業界をリードするモデルとの互換性を実現します。 - Bosch PFR1K、2K、3K、4K - Zexel PFR2KX、PFR3KX、PFR4KX - Stanadyne PFR (2 つのポンプを同時にテスト) - Bosch Q サイズ - Nippondenso mini (1 ～ 4 気筒) コンパクトなエンジン部品をテストする場合でも、正確なタイミング調整を必要とする大規模なセットアップをテストする場合でも、9562-KW は比類のないパフォーマンスと柔軟性を実現します。

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 19 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in three wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyls Camshaft 7 mm (9564-A) and 6 mm (9564-B)
- 1 cyl Camshaft (9564-C)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 1 cyl. (9562-N)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and controller (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- plate for Yanmar 3 cil pumps (TD9001)
- plate for Yanmar 3 cil pumps (TD9003)
- plate for Yanmar 2 cil pumps (TD9004)
- plate for Bosch PFM..1P pumps (9562-P)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

Specifications:
- external diameter: 6 mm
- internal diameter: 1,5 mm
- thickness: 2,25 mm
- length: 710 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Hartridge AHP134

Rislan flex.hose with quick connections on male/female fitting 20x1,5

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Bosch.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4)
- 4 cyl camshaft (9564-A)
- Fixing plate for Bosch PFR .. 1K (9562-A)
- Fixing plate for Bosch PFR .. 2K (9562-C)
- Fixing plate for Bosch PFR .. 3K (9562-D)
- Fixing plate for Bosch PFR .. 4K (9562-E)
- Rod (9562-F) and fuel control connector (9562-G)
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Marbed® 9241スパイラルワイヤーロープは、ねじれと螺旋状に巻かれた金属ワイヤーから作られ、比類のない強度と柔軟性を備えています。鉛シールやシーリングプライヤーと併用できるように設計されており、改ざん防止機能を備え、校正やシーリング作業においてプロフェッショナルな仕上がりを実現します。精度と信頼性を重視するプロフェッショナルにとって必需品です。

これらの鉛シールは、改ざん防止と校正の完全性確保に不可欠です。シーリングプライヤーを用いて装着することで、不正な操作を防止し、明確な視覚的インジケータを提供します。可鍛性のある鉛素材が螺旋状のワイヤーとしっかりと接合され、耐久性と改ざん防止性を備えたシールを形成します。

Standard column clamp to fix B pumps on test bench (BH ref. 1 688 120 022)

Precision-machined cast iron flange with a 95 mm hub diameter. Designed for PES..P.. pump applications, Bosch 1 685 720 060, and Marbed systems like the 9680-A cradle, 9601 tools, and pivotable swivel base 9260 for advanced testing and maintenance.

High-precision machined cast iron flange with a 107 mm hub diameter. Compatible with PES..P..RS 192 diesel injection pumps, Bosch 1 685 720 159, and Marbed mounting systems for efficient pump testing and maintenance.

High-precision machined cast iron flange with a 68 mm hub diameter. Compatible with PES..AS 151/155, ..S418, PES..M.., VE..F..L19, PES... MW pumps (MERCEDES, VOLVO etc.) pumps, Bosch 1 685 720 018, and Marbed mounting systems for efficient pump testing and maintenance.

Precision-crafted flange with a 50 mm hub diameter for diesel pump alignment. Compatible with EP / VM, EP / VA, PL 04.. (Mini), NP-VE Zexel, VE..F.., VE..E.., Bosch 1 685 720 062, and the Marbed 9680-A, 9601, and pivotable swivel base Marbed 9260 systems.

Clamp to fix our coupling 9747 on the test bench ( KDEP 1545)
