Mengubah bangku pengujian diesel ISO4008 apa pun menjadi sistem yang siap digital untuk menguji pompa injeksi yang dikontrol secara elektronik di mana pengaturan waktu injeksi direferensikan ke posisi sudut poros bubungan pompa.

Adapter plate for DENSO ECD V3/V4/V5 pumps for the advance reader

Kit for testing rotary Denso ECD-V3/V4 pumps.The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- basic cable (2 mt. Length)
- adapter cables
- servicing manual with step-by-step illustrated instructions
- Registration form to receive the test plan for the calibration of EDC-V3/V4 pumps. The available test data are supplied separately free of charge, after having accepted the licence agreement.

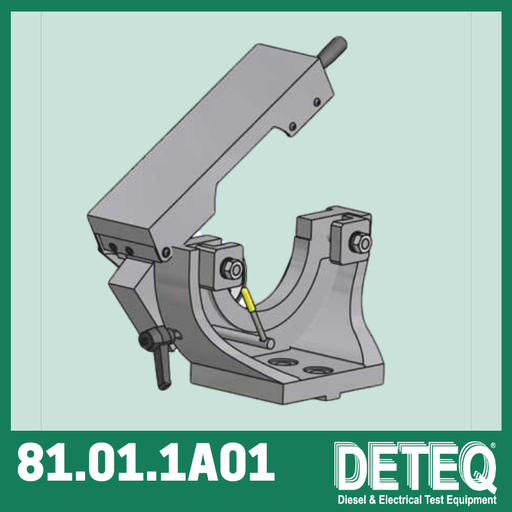

Integrating kit for 81.01.1A01, on Denso ECD V3/V4 pumps.
The following components are provided:
- Centering bracket: mounting flange Ø 50mm
- Coupling system: hub Ø20mm with pulley (pump side)
- Coupling system: hub Ø25mm with pulley (pump side)
- fittings for transfer pressure measurement on V3 pumps
- fittings for transfer pressure measurement on V4 pumps

Mengukur secara elektronik perpindahan piston maju dalam pompa diesel putar, memungkinkan verifikasi dan kalibrasi waktu yang tepat melalui unit kontrol DETEQ.

Training service for the use of the ERT45R Simulator with the kits for the test of DENSO ECD-V3/V4 & DENSO ECD-V5 pumps..

Service features:
- The training course will take place in Italy at DETEQ headquarter
- Duration of 1 day ( 8 working hours )
- Maximum for 2 participants
- Is held in English Language
- The standard training is destined to participants already operators of diesel systems.
- Is excluded the technical instruction on the technology of the components which are object of the machine operativity. This kind of service can be provided only upon agreement with DETEQ.
-At the end of the training will be issued a frequency profit Certificate

The course includes the training provided by DETEQ Technicians, for:
- Performance features of the products
- Details and installation problems
- Methods of use
- Maintenance
- Practice with the help of DETEQ technicians. The participants will be first instructed and then followed step by step by our technical personnel for practical exercises.

Unit Kontrol ERT45R adalah inti dari sistem pengujian universal yang dirancang untuk pompa injeksi diesel yang dikontrol secara elektronik, kompatibel dengan semua meja pengujian. Simulator inovatif ini telah dikembangkan melalui penelitian ekstensif, menghasilkan perangkat serbaguna yang dapat diprogram melalui kartu pintar (kartu microchip). . Fitur ini selaras dengan kebutuhan operasional modern.
ERT45R adalah investasi jangka panjang, memungkinkan perluasan yang mudah melalui pilihan kit pemrograman yang tersedia—21 opsi saat ini tersedia. Setiap kit mencakup kartu pemrograman (perangkat lunak), instruksi manual terperinci dengan ilustrasi langkah demi langkah, dasar kabel (panjang 2 meter), dan kabel adaptor yang disesuaikan untuk konektor pompa tertentu. Dengan pengaturan yang mudah, setidaknya satu kit pemrograman diperlukan untuk fungsionalitas, menjadikan ERT45R alat penting bagi para profesional yang ingin meningkatkan kemampuan pengujian mereka sekaligus memastikan fleksibilitas dan efisiensi di lingkungan kerja mereka.

The device has a double function: not only to measure the fuel temperature at the outlet of the pump, but also it incorporates a lever valve by which it is possible to exclude the control valve on the pump and speed up the fuel cooling.
