Pump Testing Equipment

25 mm conical coupling
25 mm conical coupling to drive diesel pumps on any test bench. Length 100, teeth 12 mm
The puller 9463 is recommended to unplug the shaft.
Drive coupling
8 mm Oldham drive coupling for CP1 pumps (Mercedes) on any test bench.
Similar to BH 1 685 702 086
Drive coupling
10 mm Oldham coupling to drive diesel pumps on any test bench.
Drive coupling
9 mm Oldham drive coupling for CP3 (FIAT) ans Siemens pumps on any test bench.
Similar to 1 685 702 090
ERT45R Programming Kit for Caterpillar C6.6 and C4.4 Common Rail Pumps
The ERT45R Programming Kit enhances the functionality of the ERT45R control unit, specifically for testing Caterpillar C6.6 and C4.4 common rail pumps.
By leveraging the available features, Diesel Fuel Injection Specialists are equipped to conduct a comprehensive range of tests with confidence, achieving both precision and reliability in evaluating the performance of this type of pumps.
The specialized software together with the cables are crucial for professionals aiming to deliver high-quality service in fuel injection system diagnostics, thereby improving overall operational efficiency.
ERT45R programming kit to test the CP1, CP3, CP1H and CP4 Bosch commonrail pumps.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- adapter cables
- servicing manual with step-by-step illustrated instructions

*** basic cable (81.01.3765) to be ordered separately
ERT45R programming kit to test the DFP1 and DFP2 Delphi commonrail pumps.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- adapter cables
- servicing manual with step-by-step illustrated instructions

*** basic cable (81.01.3765) to be ordered separately
ERT45R programming kit to test the HP2, HP3 and HP4 Denso commonrail pumps.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- adapter cables
- servicing manual with step-by-step illustrated instructions

*** basic cable (81.01.3765) to be ordered separately
ERT45R programming kit to test the VDO commonrail pumps.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- adapter cables
- servicing manual with step-by-step illustrated instructions

*** basic cable (81.01.3765) to be ordered separately

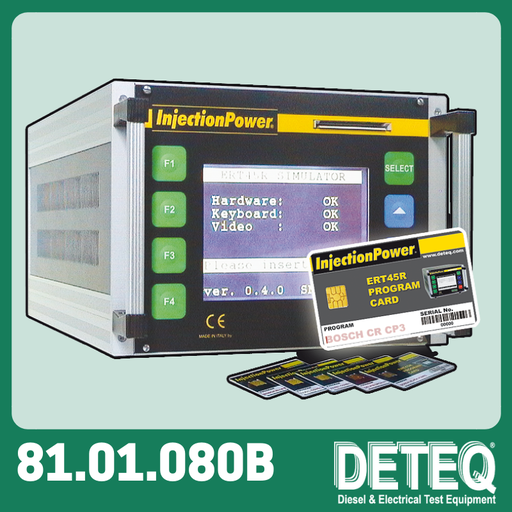

ERT45R नियंत्रण इकाई
ERT45R नियंत्रण इकाई इलेक्ट्रॉनिक रूप से नियंत्रित डीजल इंजेक्शन पंपों के लिए डिज़ाइन की गई एक सार्वभौमिक परीक्षण प्रणाली का मूल है, जो किसी भी परीक्षण बेंच के साथ संगत है। इस अभिनव सिम्युलेटर को व्यापक शोध के माध्यम से विकसित किया गया है, जिसके परिणामस्वरूप एक बहुमुखी उपकरण तैयार किया जा सकता है जिसे स्मार्टकार्ड (माइक्रोचिप कार्ड) के माध्यम से प्रोग्राम किया जा सकता है। यह सुविधा आधुनिक परिचालन आवश्यकताओं के साथ पूरी तरह मेल खाती है।
ERT45R एक दीर्घकालिक निवेश है, जो उपलब्ध प्रोग्रामिंग किटों के चयन के माध्यम से आसान विस्तार की अनुमति देता है - वर्तमान में 21 विकल्प उपलब्ध हैं। प्रत्येक किट में एक प्रोग्रामिंग कार्ड (सॉफ्टवेयर), चरण-दर-चरण चित्रण के साथ एक विस्तृत निर्देश मैनुअल शामिल है केबल (लंबाई में 2 मीटर), और विशिष्ट पंप कनेक्टर्स के लिए तैयार किए गए एडाप्टर केबल, एक सीधे सेटअप के साथ, कार्यक्षमता के लिए कम से कम एक प्रोग्रामिंग किट आवश्यक है, जिससे ERT45R लचीलेपन को सुनिश्चित करते हुए अपनी परीक्षण क्षमताओं को बढ़ाने के इच्छुक पेशेवरों के लिए एक आवश्यक उपकरण बन जाता है। उनके कार्य वातावरण में दक्षता।
Fixing tool
Interface to be assembled on the flange 8130 and 9478-CR for fixing Delphi cr pumps as R9042A040A or R9042A014A and similars.
Flange
Warrants the centered clamping of the pumps having 50 mm hub diameter, on any test bench. The flange requires 9680-A universal cradle or similar.
HYDRAULIC CONNECTION KIT FOR BOSCH CR PUMPS
HYDRAULIC CONNECTION KIT FOR BOSCH CP1/CP3/CP1H CR PUMPS. Items included:
Connection cables pumps > flow-meter
Cable for feeding pumps
Set of high pressure pipes
HYDRAULIC CONNECTION KIT FOR DELPHI CR PUMPS
HYDRAULIC CONNECTION KIT FOR DELPHI DFP1/DFP2 CR PUMPS:
Connection cables pumps > flow-meter
Set of high pressure pipes
HYDRAULIC CONNECTION KIT FOR SIEMENS CR PUMPS
HYDRAULIC CONNECTION KIT FOR SIEMENS CR PUMPS. ITEMS INCLUDED:
Connection cable pumps > flow-meter
Cable for feeding pumps
Set of high pressure pipes
ZME valve holder
Hydraulic connections
Set of hydraulic connections for CATERPILLAR C6.6 pumps
Kit connessioni idrauliche per CP4
HYDRAULIC CONNECTION KIT FOR BOSCH CP4 CR PUMPS. Items included:
Cable for the return of the pump
Cable for feeding pump
Set of high pressure pipes
Kit controllo depressione con manovuotometro.
This device allows to monitor the pump body pressure (5 BAR).
It is also equipped with ball valve, to measure the negative pressure generated by the pump.
Caution: Not all test benches are able to supply the amount of flow required by the comon rail pumps. Therefore, it is crucial to monitor that, during the test, the pump does not go into cavitation.
Kit di connessioni idrauliche per pompe Denso HP3/HP4. Articoli inclusi:Cavo alimentazione pompaCavo di connessione pompe > flussometroSet di tubi alta pressione pompa > accumulatore
HYDRAULIC CONNECTION KIT FOR DENSO CR HP3/HP4 PUMPS. Items included:
Connection cable pumps > flow-meter
Cable for feeding pumps
Set of high pressure pipes
