Adjustment tool for the maximum fuel on Delphi DP200 pumps.
Similar to Cav Lucas Delphi Hartridge 6408-80A

Alignment tool, oversize hydraulic head for DPA pumps. Similar to CAV / Lucas / Delphi 7144-508C

Allen wrench, 10 mm hexagon drive to dismount the high-pressure sealing ring of common-rail injectors - 7,5 mm hole

Allen wrench, 10 mm hexagon drive to dismount the high-pressure sealing ring of common-rail injectors - 6,5 mm hole

Tappet clamp for removal and fitting the roller tappets
Similar to Bosch genuine ref. 0 986 611 298, KDEP 2941

Wrench to fix/remove the flange, shaft and pulley on the following pumps ZEXEL VP. The timing pin is included.

Pair of assembly busch for governor cap (similar to 7144-459A)

EPVA...VE pumps timing: dial gauge rocking bracket, for the indirect measurement of the plunger stroke.
Similar to Denso 95095-10400. Toyota 09275-54011

High accuracy electronic tool to test and trig the electromagnetic actuator of Bosch CRI and CRIN injectors and automatically relief the ball lift for the 3rd stage repair.

Bearing for fuel inlet-EHAB adapter ( BH 0 986 612 653 )

Standard column clamp to fix B pumps on test bench (BH ref. 1 688 120 022)

Similar to Bosch 0 986 611 453, KDEP 2988. Zexel 157915-0100.

New bracket kit and vice for P BOSCH pump. Consisting of:9260/9452-A/9267-U

Bosch test bench brackets for B pumps - radius 56 mm ( BH 1688030012)

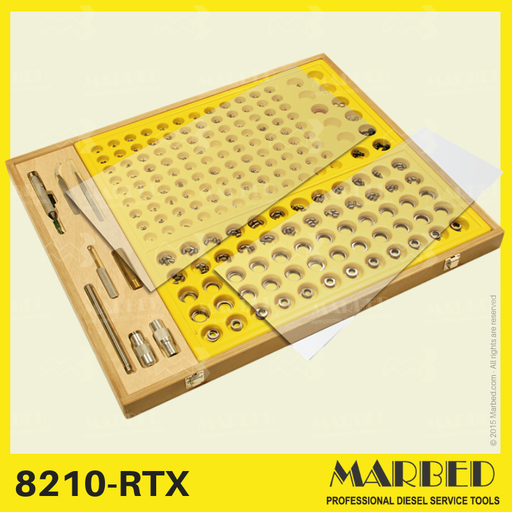

Assortment of 850 calibrating shims for Bosch CRI and CRIN injectors, with 5 useful tools.
List of contents:
8210-T1, ball handling tool
8210-T2, antimagnetic pair of pliers
8210-T3, ring inserter
8210-T4, valve interter
8210-T5, ring extractor
8210-R04 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R05 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R06 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R07 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R13 from 1.14 to 1.25, every 0,01 mm (5 pcs each thickness)
8210-R28 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R29 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R34 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R35 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R41 from 1.19 to 1.10, every 1.30 mm (5 pcs each thickness)

Bracket for assembly / disassembly of common rail pumps, on the workbench.

The circular support must be installed on revolving bases (ref. 8132 or 9260).
The system consists of a circular ring support, on which the (removable) bracket with adjustable projection is mounted, which allows to press the tappets. The circular holder holds an interchangeable round flange, which can rotate 360 degrees and can be locked in any position.
The internal flange allows to fix CP1, CP3, CP4, HP1, HP3, HP4, Delphi and VDO pumps.
Similar to 0 986 612 794

As an additional option, the following optional flanges are also available:
- 8131, for CP3.4 pumps
- 9402, for mechanical pumps A, M, VE, DPC
