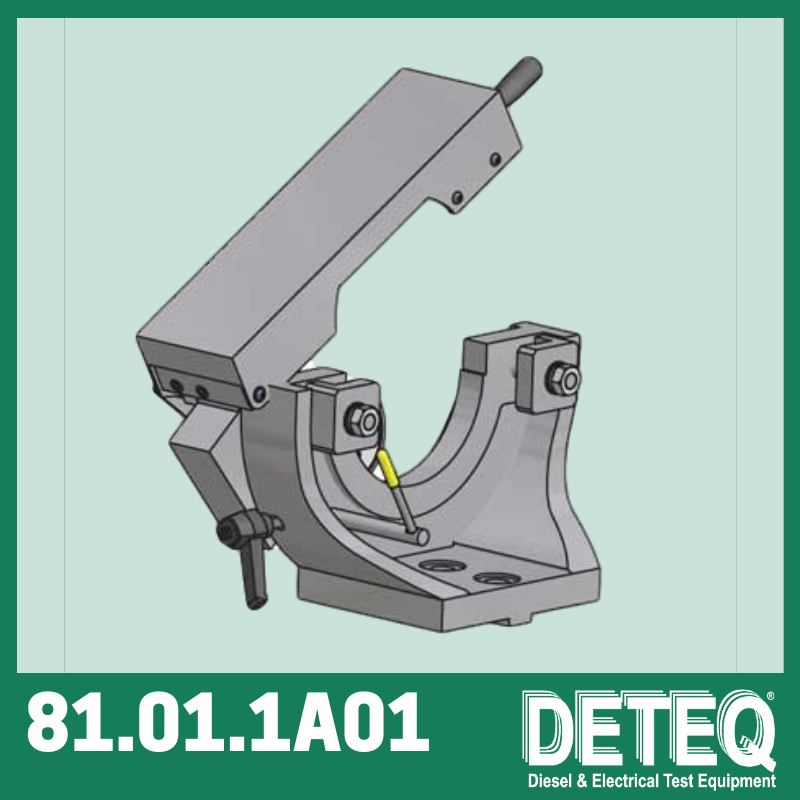

Digital Pump Timing Bracket with Angular Position Reader

The DETEQ 81.01.1A01 Digital Pump Timing Bracket with Angular Position Reader is a high-precision mounting fixture that enables any ISO4008-compliant diesel test bench to control and measure the angular position of electronically managed injection pumps.

It is essential for systems where injection is referenced to the camshaft angular position, such as Bosch VP44/VR30, Delphi DP210/EPIC, and Denso ECD-V3/V4/V5 pumps.

The integrated reader provides an angular resolution of 0.01°, ensuring accurate synchronization during digital testing.

Key Benefits

• Upgrades any ISO4008 test bench for electronically controlled diesel pump testing

• Enables injection control based on camshaft angular position feedback

• Allows pump disconnection from the bench without rotation or phase loss

• Ready-to-use, precision-machined cast-iron assembly

• Standard Bosch interface (125 mm / 20 mm) with optional spacers for other heights and guide sizes

Key Features

• Electronic angular reader with 0.01° precision

• Dual half-coupling allows safe disengagement without rotating the drive shaft, after having secured the pump camshaft once timing is set

• Magnetic safety cover isolating rotating components

• Adaptable mounting base with optional spacers for various bench configurations

Operational Functions

• Measures and references the pump camshaft angular position during digital injection control

• Transfers rotation to the angular reader via toothed belt and pulley

• Enables precise timing adjustment with the ERT45R control simulator

• Allows pump removal without altering the set timing angle, thanks to the two-part coupling system

• Compatible with any test bench built to ISO4008 geometry

Technical Data

Use Cases

• Diesel injection pump calibration and testing

• Electronic pump timing verification

• Test bench upgrading for digital pump control systems

• OEM and aftermarket R&D applications

Kit Contents

Delivered as a ready-to-use assembly, including:

• Mounting bracket

• Angular position reader with belt and pulley drive

• Extractor for the half-coupling included in configuration kits
