Diesel Injector Lapping Abrasives
Most injector leakage after repair is caused by incorrect abrasive sequence.
Looking for green lapping paste or equivalent?
• Final sealing → 9018 (Green)
• Not perfectly prepared surface → use 9016 before
Quick selection:
| Light maintenance | 9016 → 9018 |
| Standard repair | 9014 → 9016 → 9018 |
| Damaged surface | 9013 → 9014 → 9016 → 9018 |
This is not a generic polishing guide.
This process is specific to diesel injector seats and precision sealing surfaces.
What goes wrong in injector seat finishing
This is why many repaired injectors still leak even after polishing.
- leakage after repair
- unstable sealing
- repeated disassembly
Cause:
👉 incorrect sequence of abrasives
In diesel injector work, the objective is not visual polishing.
The real objective is to prepare the surface correctly, improve contact quality and achieve reliable mechanical sealing.
Incorrect abrasive sequence is one of the main causes of injector leakage after repair.
A practical guide for surface preparation, lapping and sealing on injector seats and precision fits.
Two functional groups of abrasive compounds
The InjectionPower abrasive compounds are divided into two clear functional groups, each serving a specific purpose in the diesel injector repair process.
1. Surface Preparation
| Products | Function | Typical Application |
|
Remove defects and prepare the surface | Initial correction of damaged seats |
2. Lapping
| Products | Function | Typical Application |
|
Improve contact and sealing | Final sealing of precision fits |
The first group prepares the surface by removing imperfections, while the second group improves the actual sealing contact between precision components. This two-stage approach is essential for professional results.
This process applies to Bosch, Delphi, Denso and other injector systems, for injector seat lapping and diesel injector sealing.
Surface preparation compounds
Surface preparation is the critical first step that determines the success of all subsequent work.
This stage solves the most common causes of injector leakage:
- carbon deposits
- corrosion
- surface damage
Progressive Correction Sequence:

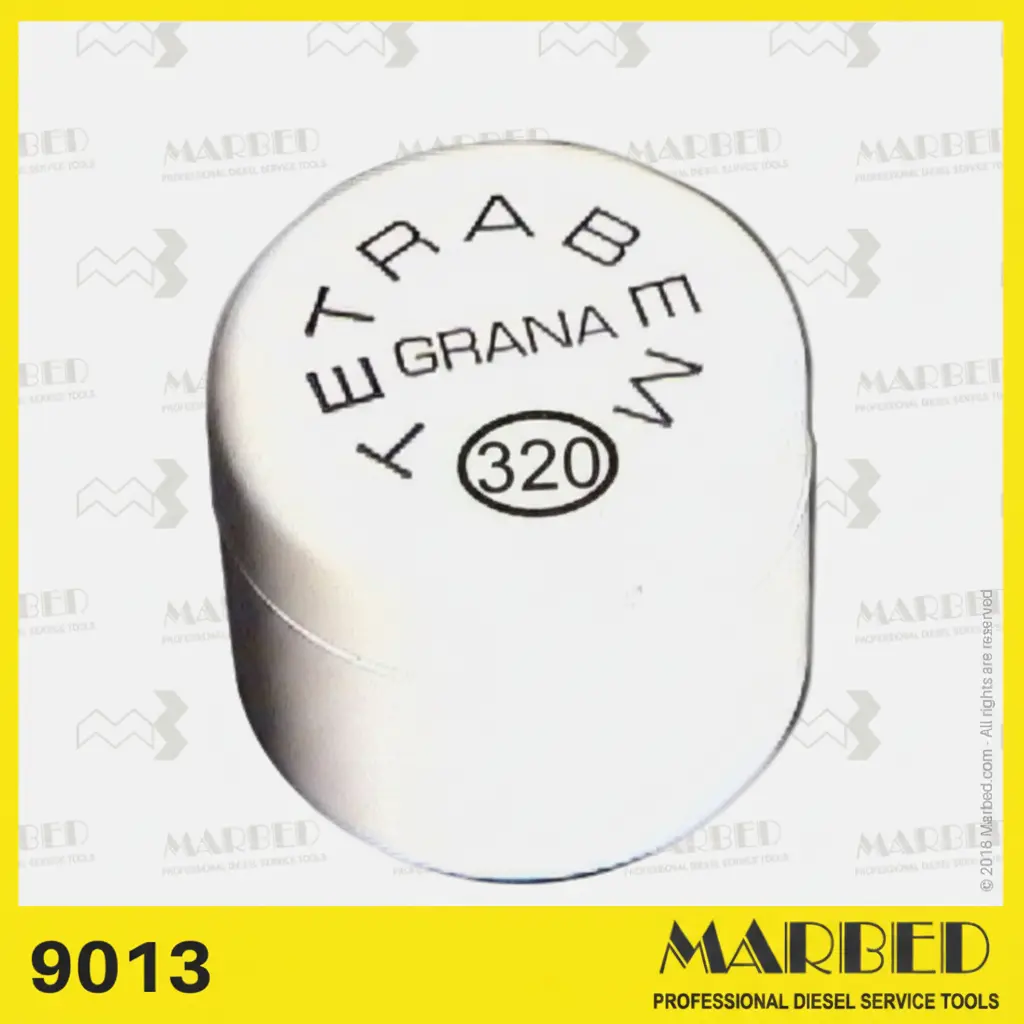

9013
Role in process
Initial surface correction
When to use
Use when the sealing surface shows visible damage, wear, or irregularities.
This is the starting point when the condition is poor or unknown.
When not to use
Do not use on already uniform or lightly worn surfaces.
Sequence position
First step in full correction workflow

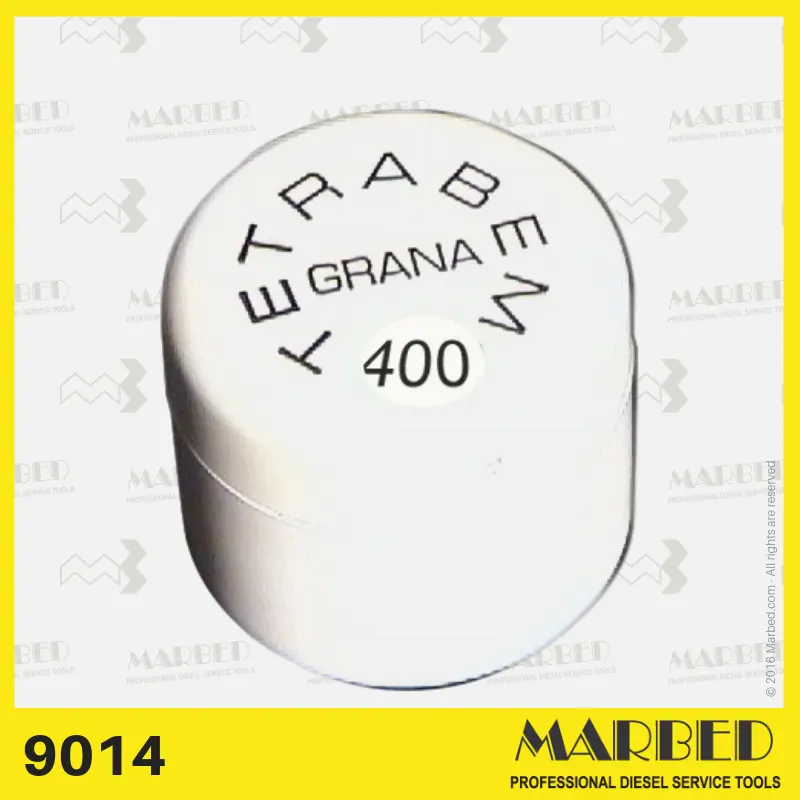

9014
Role in process
Intermediate surface preparation
When to use
Use after coarse correction or when moderate surface defects are present.
Helps stabilize the surface before finer preparation.
When not to use
Do not use as final step.
Sequence position
After 9013, before finer compounds

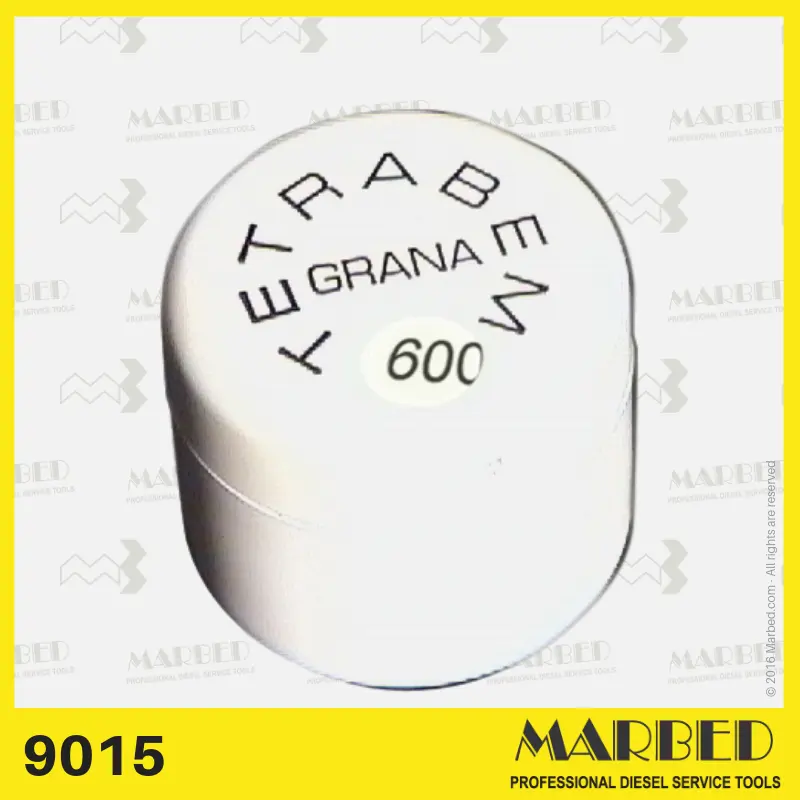

9015
Role in process
Fine surface preparation
When to use
Use when the surface is already corrected but still requires refinement before lapping.
Prepares the surface for proper contact.
When not to use
Do not rely on this step alone for damaged surfaces.
Sequence position
Final preparation before finishing compounds

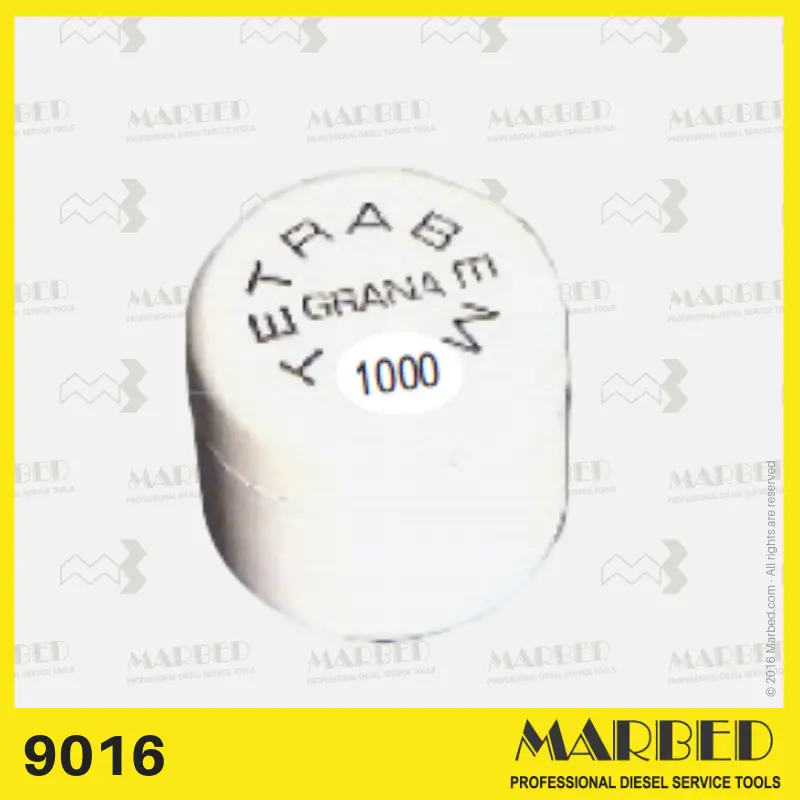

9016
Role in process
Pre-lapping refinement
When to use
Use when the surface is nearly ready for sealing.
Improves contact quality before final lapping.
When not to use
Do not use on unprepared or damaged surfaces.
Sequence position
Last preparation step before lapping
This progressive approach ensures that each compound works on a surface that's already been partially corrected by the previous step, maximizing efficiency and results.
Lapping compounds for injector seats and precision fits
Once the surface has been properly prepared, lapping compounds take over to create the perfect sealing interface. These compounds are specifically formulated for:
- Creating uniform contact between mating surfaces
- Improving the microscopic surface finish
- Enhancing the sealing capability of precision components
- Ensuring long-term reliability of the injector assembly
Specialized Lapping Compounds
9017
Role in process
Alternative or complementary finishing
When to use
Used for final polishing depending on workshop practice or specific application.
Can complement or replace the green compound in some cases.
When not to use
Do not use as a substitute for proper surface preparation.
Sequence position
Final stage (alternative finishing)
9018
Role in process
Final lapping and sealing
When to use
Use on already prepared surfaces to achieve uniform contact and sealing quality.
Essential for final finishing.
When not to use
Do not use on surfaces that still require correction.
Sequence position
Final step
Each compound is part of a sequence.
Using the wrong step will compromise the final sealing result.
Typical workshop sequences
The correct sequence depends on the initial condition of the injector components and the specific repair requirements. Here are the most common workshop sequences:
Light Maintenance
For injectors with minimal wear and good overall condition
9016 → 9018
Standard Repair
Most common sequence for general injector repair
9014 → 9016 → 9018
Critical Sealing Cases
For heavily damaged or high-performance applications
9014 → 9015 → 9017 → 9018
Always assess the surface condition before selecting your sequence. When in doubt, start with a more aggressive preparation compound to ensure all defects are properly addressed.
The compounds described above correspond to Marbed abrasive series used in professional diesel workshops.
Correct Process Flow
Surface Preparation
Remove all defects and create uniform surface
Lapping
Improve contact between mating surfaces
Final Sealing
Achieve reliable mechanical seal
Most workshops use this combination
The majority of injector repairs follow a standard sequence.
This set includes the compounds required for correct surface preparation and reliable sealing.
Why fine lapping alone is often not enough
A common misconception in diesel injector repair is that starting with a fine lapping compound will save time. In reality, this approach often leads to:
- Incomplete removal of surface defects
- Poor sealing despite apparent surface finish
- Premature wear of injector components
- Recurring sealing issues after short periods of use
Critical Warning
Using 9018 directly on an unprepared surface may create the illusion of a good seal, but microscopic defects will remain, leading to fuel leaks and injector failure under operating conditions.
Typical application context
These specialized abrasive compounds are essential for professional work on:

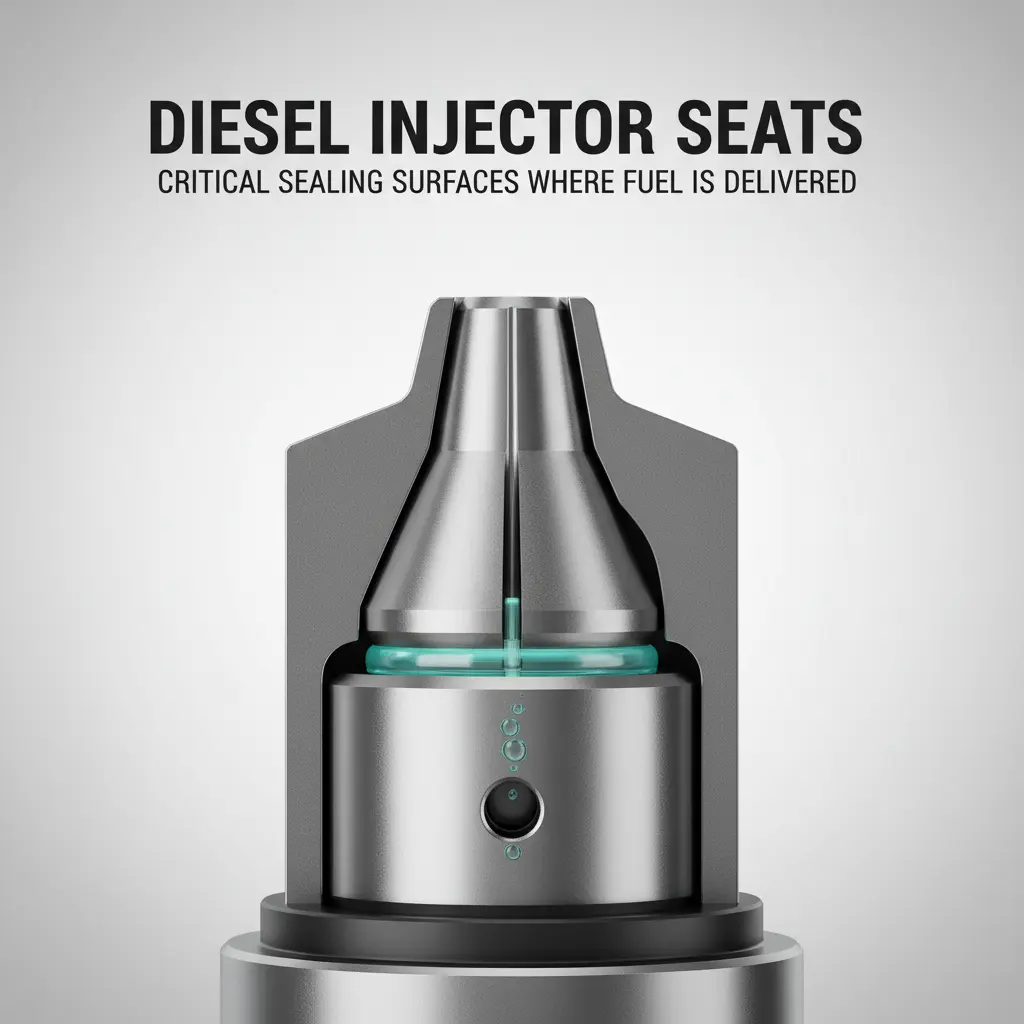

Diesel Injector Seats
Critical sealing surfaces where fuel is delivered

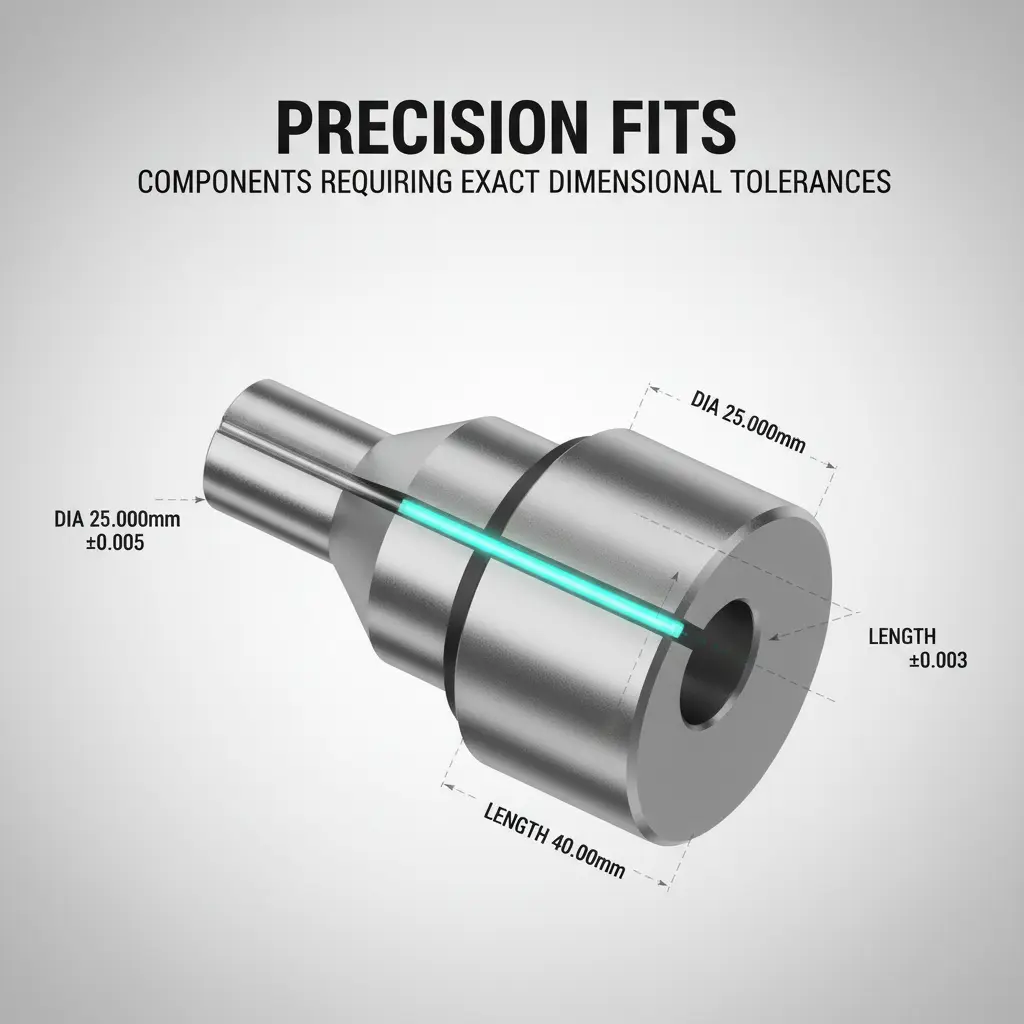

Precision Fits
Components requiring exact dimensional tolerances

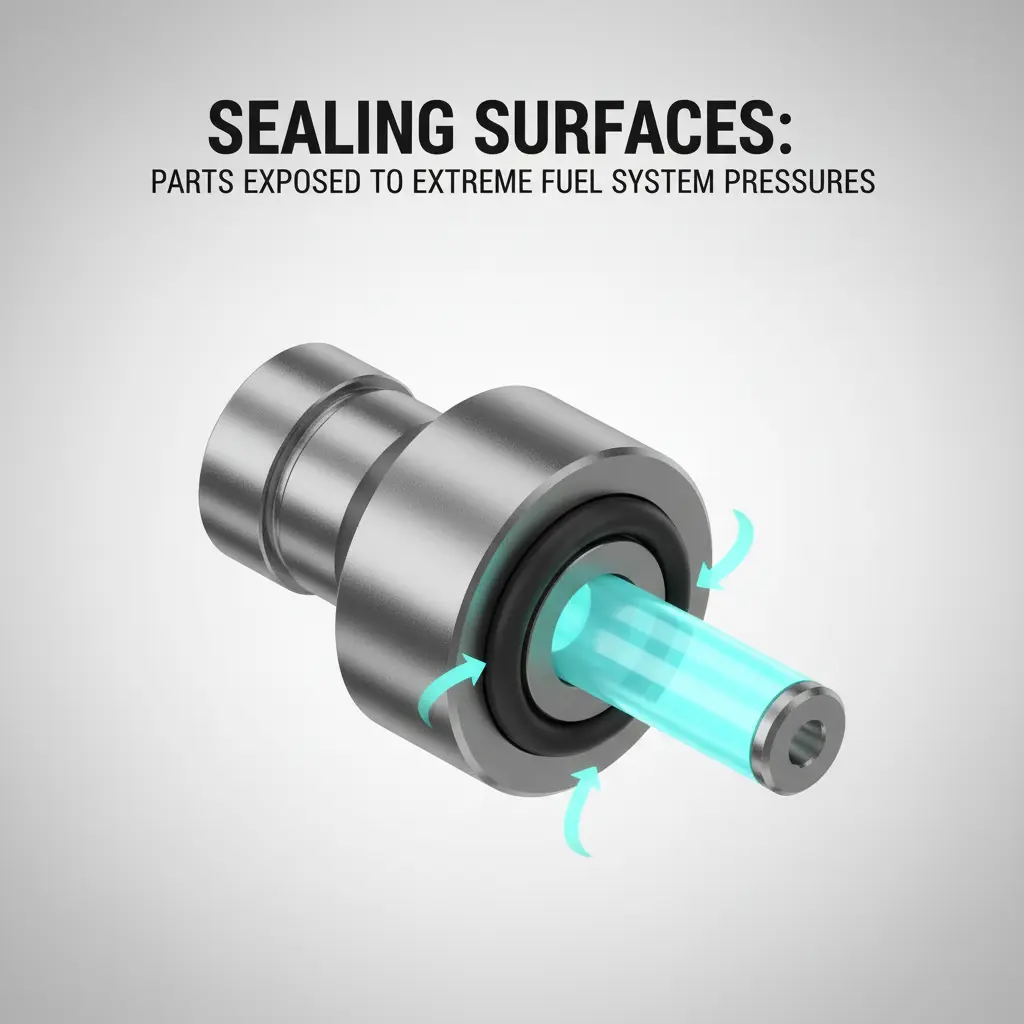

Sealing Surfaces
Parts exposed to extreme fuel system pressures.

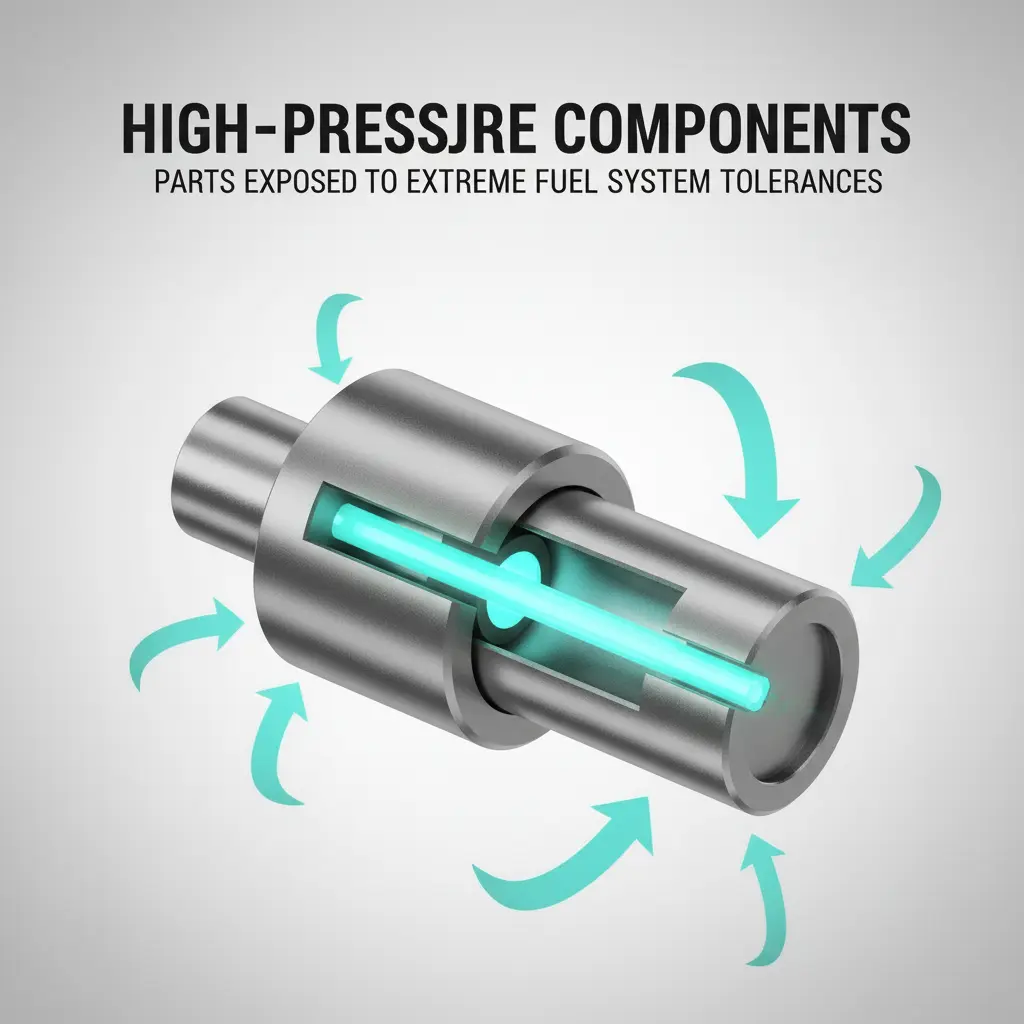

High-Pressure Components
Parts exposed to extreme fuel system pressures
The goal is always functional performance, not cosmetic appearance. Proper surface preparation and lapping directly impact:
- Injector efficiency and fuel economy
- Engine performance and power output
- Emissions compliance and environmental impact
- Component longevity and reliability
Not sure which set fits your case?
Send us:
- injector type
- surface condition
- repair objective
👉 We will recommend the correct sequence or set.
